Adding aftermarket accessories like audio systems, recovery winches, auxiliary lighting, or heavy-duty inverters immediately exposes the hard limitations of factory electrical systems. When you demand more power than your vehicle was engineered to provide, the stock infrastructure struggles to keep up. This mismatch often leads to chronic undercharging, catastrophic voltage spikes, or wasted budget on excess capacity that the vehicle simply cannot utilize. Selecting an incompatible charging unit puts sensitive onboard electronics at risk and frequently leaves you stranded with a dead battery on the trail or the job site.
Successful electrical system upgrades require a precise understanding of the relationship between voltage and amperage. Voltage provides the electrical push, while amperage represents the physical draw from your components. By balancing these two factors, you ensure safe, reliable vehicle compatibility. This guide breaks down how to evaluate your true electrical needs, choose the correct components, and implement high-capacity upgrades without damaging your vehicle's sensitive control modules.
Amperage is Drawn, Not Forced: A higher amperage rating will not damage vehicle electronics; the system only pulls the current it requires.
Voltage Must Be Regulated: Excessive voltage will destroy sensitive components, making the voltage regulator a critical compatibility checkpoint.
Idle Output Matters Most: Peak amperage ratings are secondary to what the unit produces at engine idle, where electrical deficits typically occur.
Infrastructure Must Match Output: Upgrading to a high-capacity unit mandates corresponding wiring upgrades to prevent thermal failure and voltage drop.

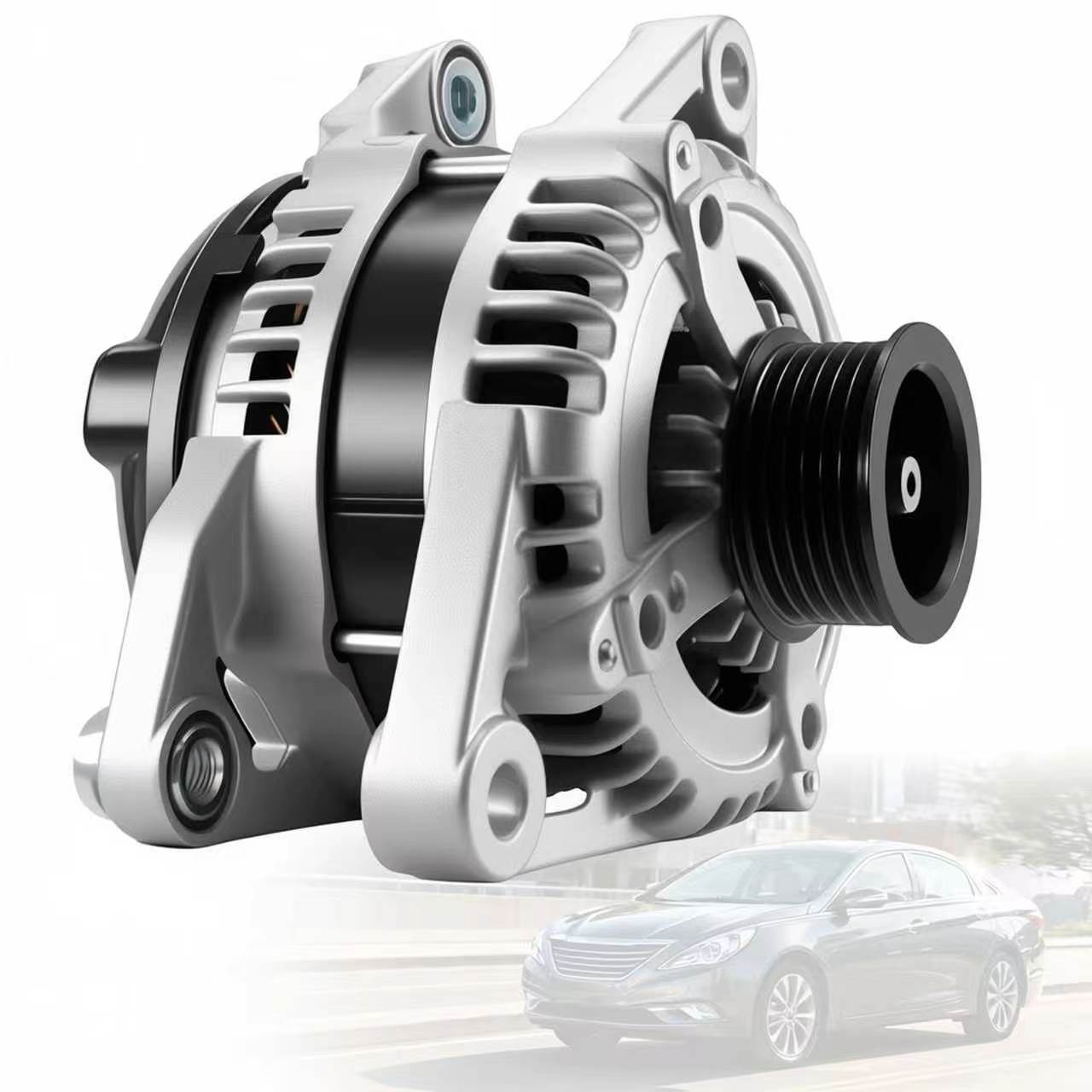

Voltage acts as the force pushing electrical current through the vehicle's circuits. Think of it as water pressure in a pipe. A standard operating range for a healthy 12V Alternator typically falls between 13.5V and 14.8V while the engine is running. This pressure ensures that the battery charges properly and all accessories receive adequate power to function without dropping offline.
Modern vehicles rely heavily on ECU-controlled systems to monitor and demand specific voltage ranges. These computers are highly sensitive to voltage fluctuations. If the voltage exceeds the safe limit, it triggers diagnostic trouble codes (DTCs) or causes immediate component failure. Regulating this electrical pressure is non-negotiable for vehicle compatibility. You cannot simply bolt on a unit that spikes to 16V without expecting the dashboard to light up with errors.
When evaluating a replacement, you must verify the set point of the internal or external regulator. Factory systems are tuned to specific battery chemistries. Flooded lead-acid batteries tolerate different charge profiles than modern AGM (Absorbent Glass Mat) or lithium setups. Pushing 15 volts into a standard lead-acid battery will boil the electrolyte, while undercharging an AGM battery will drastically shorten its lifespan.
Amperage defines the volume of electricity available to power components. A common misconception is that an Alternator "pushes" amperage into the system. In reality, the vehicle's accessories "pull" amperage based on their resistance. The charging unit simply supplies what is requested, up to its maximum physical capacity.
Factory units often produce between 80 and 130 amps. When the total accessory draw exceeds this maximum output, the system fails to keep up. The battery must then supply the missing power, leading to rapid drain and eventual failure. Upgrading capacity becomes necessary when the electrical demand outpaces the factory supply. If you run a 100-amp light bar on an 80-amp factory system, your battery is discharging the entire time the lights are on.
Understanding the difference between peak amperage and continuous amperage is vital. A unit might advertise a 200-amp peak, but it can only sustain that output for short bursts before thermal limits force it to dial back. Continuous rating tells you what the unit can safely provide hour after hour on a long drive or during extended winching operations.
Auditing the vehicle's factory electrical baseline is the first step in any upgrade. You must understand the physical and electrical constraints of the original system. Physical compatibility factors include mounting bracket styles, pulley diameters, and serpentine belt alignment. If the new unit does not fit the engine bay perfectly, it cannot function properly and will likely throw the belt.
The replacement unit must physically align with factory mounting points. It must also provide sufficient electrical overhead for planned accessories. A successful installation requires matching the physical dimensions while exceeding the factory electrical output. You also need to check the clearance around the exhaust manifold and steering components, as high-capacity units often feature larger cases.
Measure the distance between the factory mounting ears using digital calipers.
Verify the pulley offset matches the factory unit to prevent belt shredding.
Check the connector plug type (e.g., 2-pin, 3-pin, or 4-pin) against the factory harness.
Ensure adequate clearance for the larger positive terminal stud found on upgraded units.
Alternators use either internal or external voltage regulators. Older vehicles typically use internally regulated units, while modern vehicles rely on externally regulated systems controlled by the ECU. The regulator ensures the voltage stays within the safe operating range, adjusting output based on temperature and electrical load.
Compatibility issues arise when installing a self-exciting (one-wire) unit in a modern vehicle that expects a PCM (Powertrain Control Module) communication signal. Without this signal, the ECU may trigger warning lights, disable certain accessories, or fail to charge the battery correctly. Matching the regulation method to the vehicle's computer system is critical for a seamless installation.
Some aftermarket manufacturers offer bypass modules or custom regulators that mimic the factory PCM signal. This allows you to run a massive charging unit without angering the vehicle's computer. Always verify with the manufacturer whether their unit is plug-and-play for your specific year, make, and model, or if it requires custom wiring.
Many users worry that installing a massive 250A+ unit will "fry" their vehicle's computers. This anxiety stems from a fundamental misunderstanding of how electricity works. A High Output Alternator does not force current into the system. The accessories only draw the amperage they need to operate.
Voltage kills sensitive electronics, not amperage capability. The voltage regulator isolates and controls the system charging voltage. This ensures the vehicle only receives its target voltage, regardless of the potential amperage capacity. Upgrading amperage is completely safe as long as the voltage remains strictly regulated.
Think of it like a 500-gallon water tank connected to your kitchen sink. The massive capacity of the tank (amperage) doesn't blow up your faucet. The faucet only lets out the water you ask for. The pressure regulator (voltage regulator) keeps the flow manageable. You can install a 400-amp unit on a bone-stock Honda Civic, and the car will only pull the 40 amps it needs to run.
Specific applications drive the need for high-capacity upgrades. Competition car audio systems, off-road recovery winches, emergency vehicle lighting, and overland power inverters demand massive amounts of current. Factory systems simply cannot support these loads continuously without failing.
Symptoms of an overdrawn system include headlight dimming when the bass hits, voltage dropping below 12.5V under load, sluggish power windows, and premature battery degradation. If you experience these issues, your electrical demand exceeds the supply. Upgrading the charging system resolves these deficits and protects your battery from deep-cycle damage.
Another clear indicator is the smell of burning varnish from the engine bay. When a factory unit is pushed to 100% duty cycle for extended periods, the internal stator windings overheat. The protective coating melts, leading to a short circuit and complete failure. If you are replacing factory units every six months, you need more capacity.
To determine the required amperage rating, calculate the total system load using the formula: Wattage = Voltage × Amperage. For example, a 1200-watt amplifier running on a 12V system pulls a peak of 100 amps. You must account for every single accessory added to the vehicle to get an accurate baseline.
Calculate the continuous and peak draw of all accessories. Add this to the vehicle's base electrical requirement (typically 40-60 amps for modern fuel-injected vehicles). Factor in a 20-30% overhead margin for optimal longevity and thermal management. This ensures the unit operates efficiently without overheating under heavy, sustained loads.
Accessory Type | Estimated Amperage Draw (12V System) | Duty Cycle |
|---|---|---|
Factory Vehicle Base Load (Ignition, Fuel Pump, ECU) | 40 - 60 Amps | Continuous |
1200W Class D Audio Amplifier | 80 - 100 Amps | Intermittent (Peak) |
12,000 lb Off-Road Winch (Under Heavy Load) | 300 - 450 Amps | Intermittent |
50-inch High-Power LED Light Bar | 20 - 30 Amps | Continuous |
Dual Electric Radiator Fans | 30 - 50 Amps | Intermittent |
Air Compressor (Onboard Air System) | 25 - 40 Amps | Intermittent |
Electrical output depends heavily on engine RPM and rotor speed. Alternators generate more power as they spin faster. Peak output ratings typically occur at cruising speeds, usually around 2,000 to 2,500 engine RPM or higher, depending on the pulley ratio.
A unit rated for 300 amps at 2,000 RPM is useless if it only produces 60 amps at an 800 RPM idle. Vehicles spend significant time idling, especially in traffic, at car shows, or during off-road winching scenarios. Prioritize idle output specifications when selecting an upgrade to ensure adequate power at low speeds.
Manufacturers achieve high peak numbers by altering the internal stator windings, but this often sacrifices low-RPM performance. A well-engineered hairpin stator design provides better idle output than a traditional S-wound stator. Always ask the manufacturer for the output curve chart, not just the peak number printed on the box.
High-amperage units introduce mechanical resistance, known as parasitic drag. Turning a heavy-duty rotor requires more engine power. When you demand 200 amps, the magnetic field inside the unit becomes incredibly strong, making the rotor physically harder to turn. This increased resistance can cause the serpentine belt to slip on the pulley.
Belt slip under load causes immediate drop-offs in charging voltage and output current. It also glazes the belt, leading to squealing and premature failure. To prevent slip, you may need smaller overdrive pulleys, upgraded heavy-duty tensioners, or even dual-belt systems for extreme applications. Proper belt tension and perfect alignment are essential for reliable operation.
If you notice black dust accumulating around the front of the engine, your belt is slipping and disintegrating. Upgrading to a "Gatorback" style belt or a specialized heavy-duty fleet belt can provide the extra grip needed to turn a high-output unit without slipping.
Pushing 250+ amps through factory 8-gauge wiring creates a severe fire hazard and massive voltage drop. Factory wiring is designed strictly for factory output. Upgrading the charging unit mandates upgrading the wiring infrastructure to handle the increased current flow safely.
The "Big 3" upgrade involves replacing or supplementing three critical cables with 1/0 AWG OFC (Oxygen-Free Copper) wire. Do not use CCA (Copper Clad Aluminum) wire, as it has higher resistance and lower current carrying capacity. This upgrade ensures efficient power transfer and prevents thermal failure at the terminal connections.
Alternator Positive to Battery Positive: Run a fused 1/0 AWG cable from the output stud directly to the positive battery terminal.
Battery Negative to Chassis Ground: Upgrade the main ground wire connecting the battery to the vehicle's metal frame.
Engine Block to Chassis Ground: Ensure the engine block (where the unit grounds itself) has a massive, clean connection to the chassis.
After installation, use a high-quality digital multimeter to test voltage at the battery terminals. Start the engine and let it idle. Turn on all accessories, including headlights, high beams, AC blower on max, and audio systems. This simulates maximum electrical load on the system.
Healthy readings maintain above 13.5V under maximum load at idle. Bad readings occur when voltage drops below the battery's resting voltage of 12.6V. This signals the charging unit has completely dropped out under load and cannot support the system demand. If the voltage drops, try raising the engine RPM to 1,500. If the voltage recovers, your issue is low idle output.
Always measure directly at the battery posts, not the terminal clamps. If you see 14.4V at the output stud but only 13.2V at the battery, you have a severe voltage drop issue in your wiring. Check your crimps, clean your ground points down to bare metal, and ensure your inline fuses are secure.
Use a DC current clamp around the main charge wire to verify actual output. Standard multimeters cannot measure high amperage directly. The clamp measures the magnetic field generated by the current flowing from the unit to the battery. Compare the measured output against the manufacturer’s rated specification curve.
Apply the 10% tolerance rule. If actual output falls short by more than 10% of the rated curve at a specific RPM, diagnose internal hardware issues. Potential problems include a blown diode, stator damage, or excessive belt slip. Accurate testing confirms the upgrade performs exactly as expected before you hit the trail.
Remember that the unit will only output what the battery and accessories demand. To test maximum output, you must heavily discharge the battery first or apply a massive load using a carbon pile load tester. Clamping the wire on a fully charged battery with no accessories running will only show 10 to 20 amps, which is perfectly normal.
Calculate your total accessory draw using the Wattage = Voltage × Amperage formula to establish a baseline requirement.
Verify the idle output capabilities of any replacement unit, ensuring it meets your continuous low-speed demands.
Inspect your factory wiring gauge and immediately implement the "Big 3" OFC wiring upgrade to prevent voltage drop and fire hazards.
Consult with a specialized manufacturer to confirm physical mounting and PCM regulation compatibility for your specific vehicle platform.
A: No. A higher amperage rating simply means more capacity is available. The vehicle's electrical system only draws the amperage it needs. As long as the voltage is properly regulated, higher amperage will not damage electronics.
A: It will not damage a standard battery if the voltage regulator functions correctly. The battery only accepts the charge it requires. However, high-demand systems often benefit from upgraded AGM or lithium batteries to handle deep cycling.
A: Excessive voltage can destroy sensitive electronic components, blow fuses, and boil the battery acid. Modern vehicles will often trigger diagnostic trouble codes or shut down systems to protect against voltage spikes.
A: Most factory units produce between 80 and 130 amps, depending on the vehicle's original equipment. This is sufficient for standard accessories but falls short when adding high-draw aftermarket components.
A: While not strictly required, upgrading to a high-capacity AGM battery is highly recommended. A stronger battery works in tandem with the upgraded charging unit to stabilize voltage during heavy transient loads.
A: Voltage drops occur when the electrical demand exceeds the unit's output capacity at that specific engine RPM. This is common at idle. If voltage drops significantly, you either need a higher output unit or a smaller pulley.
A: Factory wiring is rarely sufficient for high output units. If you upgrade beyond 150 amps, you must perform the "Big 3" wiring upgrade using 1/0 AWG OFC wire to prevent voltage drop and fire hazards.
