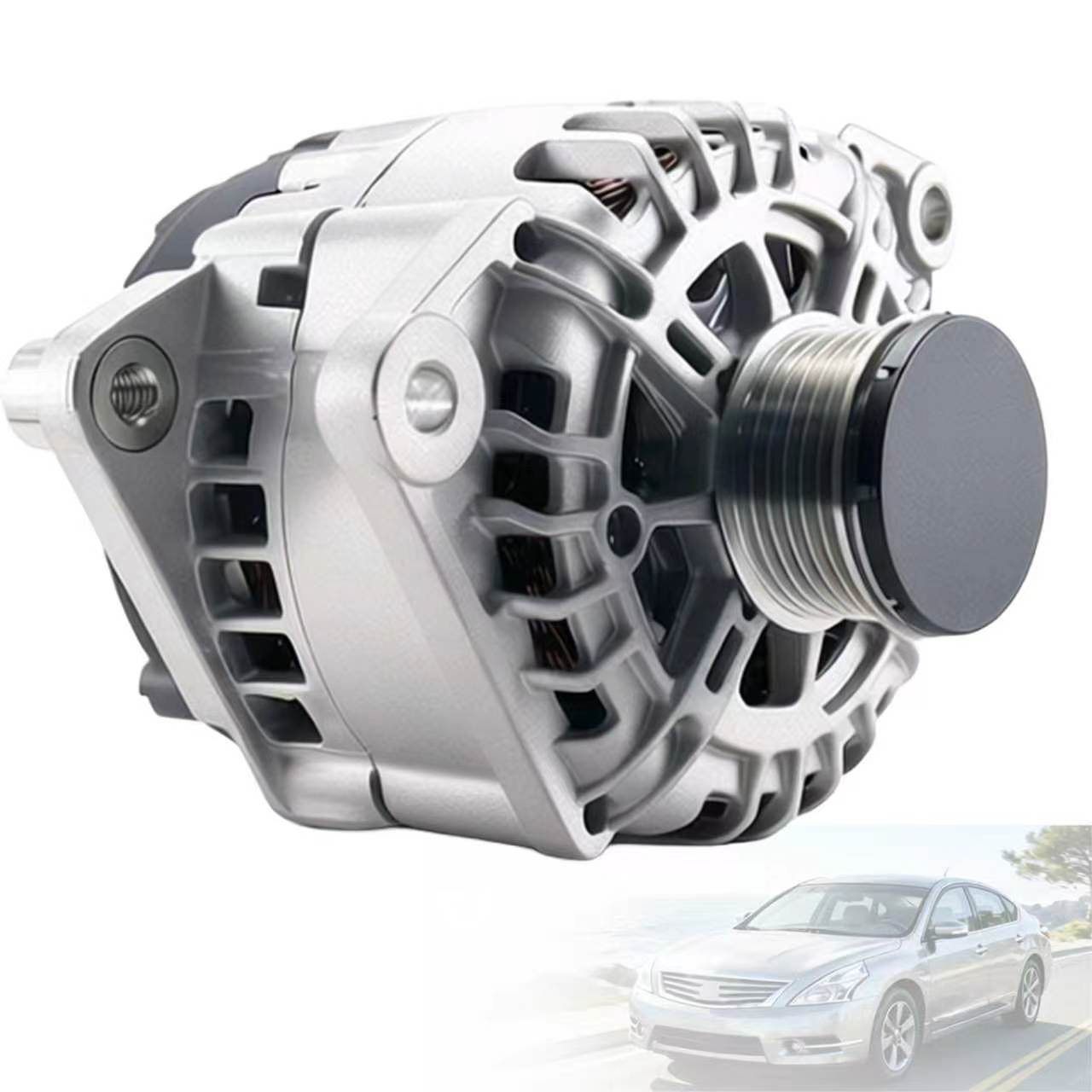

Adding aftermarket electronics to a vehicle fundamentally alters its power dynamics. Winches, high-draw audio systems, and auxiliary lighting push factory charging systems past their failure points. Mismatching a vehicle's actual electrical load with the charging system's capacity leads to chronic battery depletion. It also causes severe voltage drops and premature component failure due to excessive thermal stress. You cannot simply guess your power requirements when outfitting a rig for heavy work or off-grid travel. Conducting a precise electrical load audit determines the exact specifications required for your charging system. This shifts the focus from buying the biggest option available to buying the correct specification for your specific use case. A well-matched system ensures reliability under heavy demand, keeping your equipment running when you need it most.
Key Takeaways
Load Dictates Output: An alternator only produces the amperage demanded by the vehicle's electrical load; oversizing does not force excess current into the system, but undersizing guarantees voltage drops.
Idle vs. Peak Output: Maximum rated amperage is only achieved at specific engine RPMs; evaluating output at engine idle is the most critical metric for heavy-duty applications.
The Thermal Fade Reality: Higher electrical loads generate exponentially more heat during AC-to-DC rectification, causing up to a 15-20% drop in hot output compared to cold ratings.
The Excitation Threshold: Alternators require a minimum baseline battery voltage to excite the rotor windings; severe load overloads can drop system voltage below this excitation threshold, causing charging system collapse.
Infrastructure Requirements: Upgrading to a high-output unit (e.g., a 150A or 220A alternator) strictly requires upgrading the vehicle's foundational wiring to prevent fire hazards and bottlenecking.
Understanding the Physics of Vehicle Electrical Demand
The Relationship Between Electrical Load and Power Generation
Power generation is strictly demand-driven. The voltage regulator senses system voltage drops across the network as you turn on accessories. It then increases rotor field current to meet the rising electrical load. This process ensures the system only generates the power currently required by active components. If you turn on a set of halogen off-road lights, the regulator detects the voltage dip and commands the charging system to work harder to maintain the target 13.8 to 14.4 volts.
Electromagnetic field windings require initial voltage from the battery to excite the rotor. Extreme loads can drop battery voltage below 10V. This collapses the magnetic field entirely. Once the field collapses, the unit becomes incapable of generating power, leading to a complete system failure. We see this often on job sites when operators run heavy hydraulic pumps without fast-idle switches engaged. The battery drains, the field collapses, and the truck dies.
Electrical demand directly influences mechanical engine drag. A standard unit draws approximately one horsepower from the engine for every 25 to 30 amps of actual current produced. A high-output Alternator draws no more engine power than a stock unit at identical, lower loads. The drag only increases when the actual electrical demand spikes. You will not lose fuel economy simply by bolting on a larger capacity unit unless you are actively using that extra capacity.
How Engine Speed, Belt Slip, and Alternator Slip Affect Voltage
Maximum rated output is typically only available above 2,000 to 2,500 engine RPM. Idle output remains significantly lower. The power curve dictates how much current is available at specific engine speeds. You must evaluate this curve to understand real-world performance. A unit rated for 300 amps at 3,000 RPM might only produce 70 amps at a 600 RPM idle. If your continuous load at idle is 100 amps, your battery will discharge despite having a massive peak rating.
Sudden, heavy accessory loads increase electromagnetic resistance internally. Engaging a winch or hitting a heavy bass note induces transient load slip. This drops rotor RPM and causes sharp voltage drops across the system. Belt slip further compounds this issue. When the magnetic resistance inside the stator spikes, the physical resistance on the pulley spikes simultaneously. If your belt tensioner is weak, the belt will slip, squeal, and glaze over, permanently reducing its grip.
Matching the pulley diameter to the engine's idle RPM ensures the rotor spins fast enough. Proper pulley ratios guarantee the unit meets baseline electrical demands even at a standstill. Smaller overdrive pulleys can boost idle RPM to compensate for heavy loads. However, you must calculate the maximum engine RPM to ensure you do not over-spin the rotor bearings at highway speeds. Most rotors max out around 18,000 to 20,000 shaft RPM before centrifugal forces cause physical damage.
Calculating Total Electrical Load (Defining Success Criteria)
Establishing the Baseline Vehicle Draw
Calculating OEM continuous loads establishes your baseline. You must account for the ECU, fuel pumps, HVAC blowers, headlights, and ignition systems. These components draw power constantly while the vehicle runs. A modern fuel-injected V8 engine requires roughly 40 to 50 amps just to keep the engine running, the fuel pumping, and the computers processing data. Older carbureted engines require far less, often running on just 10 to 15 amps.
OEM design philosophies engineer for the average accessory demand. They include a small safety margin for reliability. Modified vehicles operate with continuous maximum demands that far exceed these factory margins. You must calculate the difference to avoid system failure. Factory engineers assume you will not run the heater blower on high, the high beams, the rear defroster, and the windshield wipers simultaneously for hours on end. When you add aftermarket gear, you shatter those factory assumptions.
Auditing Aftermarket, Continuous, and Transient Peak Loads
Continuous aftermarket loads include refrigerators and communications equipment. Intermittent peak loads involve winches, air compressors, and hydraulic pumps. You must separate these categories to build an accurate load profile. A 12-volt fridge might only draw 4 amps, but it does so continuously. A winch might draw 400 amps, but only for 30-second bursts. Your charging system must handle the continuous load while your battery bank handles the transient peaks.
Use a simple mathematical formula to convert accessory wattage to amperage draw. Divide the total watts by the system volts (Amps = Watts / Volts). This calculation provides the exact amperage required by each component. For example, a 240-watt LED light bar running on a 12-volt system draws 20 amps. You must perform this calculation for every single piece of electrical equipment you add to the vehicle.
Calculating a simple average is insufficient for dynamic load variations. Builders must calculate worst-case scenario concurrent loads. Winching at night in the winter with the heater and headlights on represents a realistic maximum draw. If you only calculate your daytime running load, you will find yourself stranded in the dark when temperatures drop and your electrical demand peaks.
OEM replacements suit strictly stock vehicles with no planned electrical additions. They offer a cost-effective solution with guaranteed fitment. However, they provide zero scalability for future modifications. If you drive a commuter car and only use factory accessories, a standard replacement works perfectly. The moment you add a snowplow or a heavy-duty inverter, the OEM unit will overheat and fail prematurely.
The 150A Alternator (Moderate Upgrades)
Vehicles with moderate aftermarket additions require more overhead. Upgraded audio amplifiers, basic auxiliary lighting, and dual-battery setups demand reliable power. A 150A Alternator provides the necessary capacity to support these continuous moderate accessory draws. It gives you the breathing room needed to run a fridge and camp lights without waking up to a dead starting battery.
This upgrade avoids overtaxing the charging system. It also bypasses the thermal and fitment challenges associated with extreme high-output units. It represents a balanced approach for overlanding and daily driving. You rarely need to modify brackets or upgrade to multi-rib belts for a 150-amp unit, making the installation straightforward and reliable for weekend mechanics.
The 220A Alternator and Beyond (Heavy-Duty Applications)
Extreme electrical demands require serious hardware. Heavy-duty winching, snowplows, massive audio systems, and emergency vehicle equipment push systems to their limits. A 220A Alternator ensures voltage stability under severe continuous and transient loads. Service trucks running welding equipment and heavy inverters rely on this level of power generation to keep job sites operational.
Running a unit this large requires strict attention to idle output curves. You must utilize heavy-duty rectifiers to handle the heat. Comprehensive infrastructure upgrades are mandatory to support the massive current flow. You cannot bolt a 220-amp unit onto factory 8-gauge wiring. The wire will act as a resistor, heat up, melt the insulation, and potentially cause an engine fire.
Key Evaluation Dimensions for Alternator Selection
The Crucial Metric: Output at Engine Idle
Peak amperage is a vanity metric if the vehicle spends its high-load time at idle. Winching on a trail or idling with emergency lights demands high current at low RPMs. If the unit cannot deliver power at idle, the battery will drain rapidly. Many cheap high-output units achieve their massive peak numbers by sacrificing low-end generation. They wind the stator tightly for high RPM performance, leaving you with less idle output than your factory unit.
Compare the idle output curves of different units rather than just their maximum rating. A unit rated for 250A peak might only produce 80A at idle. Another rated at 200A peak might produce 120A at idle, making it the superior choice for low-speed work. Always ask the manufacturer for the dyno sheet showing the output curve across the entire RPM range before making a purchase decision.
Thermal Management and the AC-to-DC Rectification Cycle
The rectifier bridge converts three-phase alternating current generated in the stator to direct current. This conversion process generates massive amounts of heat. Extreme current generation causes high temperatures in the rectifier diodes. Diodes are solid-state components that allow current to flow in only one direction. When they overheat, they fail, allowing AC current to leak into your DC system, which wreaks havoc on sensitive vehicle computers.
High heat increases electrical resistance, leading to thermal fade. Output drops significantly as the unit reaches operating temperature. Features like hairpin stators, dual internal fans, and oversized press-fit diodes mitigate this heat and maintain stable output. A cold unit might test at 220 amps on a bench, but after an hour of driving under the hood of a hot truck, that output can drop to 180 amps. Proper ventilation and heavy-duty components minimize this fade.
Scalability, Efficiency, and Future-Proofing
Buying for current needs versus anticipated future upgrades is a conceptual trade-off. Planning ahead saves money and prevents secondary failures. You should build a system that handles your ultimate vision for the vehicle. If you plan to add a winch next year, buy the charging system that supports it today. Doing the job twice costs more in parts and labor than doing it right the first time.
Recommend a 20 to 30 percent buffer above the calculated maximum continuous load. This ensures longevity and efficiency. It prevents the unit from running at a 100 percent duty cycle, which drastically reduces its lifespan. Running any electrical component at maximum capacity continuously generates excessive heat and accelerates bearing and brush wear.
Implementation Risks and Upgrading Pitfalls (Mitigation)
The "Big 3" Wiring Upgrade Necessity
Installing a high-output unit on factory wiring is a severe safety risk. Factory wires will melt under heavy current, causing electrical fires. You must upgrade the foundational wiring to prevent bottlenecking. The factory charge lead is usually sized exactly for the factory output. Pushing double the amperage through that wire is a guaranteed failure point.
The required upgrades include the alternator positive to battery positive, battery negative to chassis, and engine block to chassis. Use appropriately gauged, pure copper wire like 1/0 AWG. This ensures unrestricted current flow across the entire system. Do not use copper-clad aluminum (CCA) wire for these upgrades. CCA wire has higher resistance and lower current carrying capacity than pure oxygen-free copper (OFC).
Belt Routing, Pulley Sizing, and Parasitic Drag
Driving a high-output unit under heavy load risks belt squeal and heat buildup. The increased mechanical resistance causes premature belt wear. You must address the physical connection between the engine and the charging system. A slipping belt not only reduces electrical output but also generates friction heat that transfers directly into the rotor shaft, cooking the front bearing.
Switching to smaller overdrive pulleys boosts idle RPM. Upgrading mechanical tensioners keeps the belt seated properly. Converting to multi-rib serpentine belts increases surface area and eliminates slip during high-amp demand spikes. If your vehicle uses a V-belt, you are generally limited to about 100 amps of output before the belt simply cannot grip the pulley tight enough to turn the rotor under heavy magnetic load.
Battery Chemistry and Capacity Matching
An alternator is a maintainer, not a primary storage device. It cannot instantly supply 400 amps for a heavy winch pull. The battery must absorb these massive transient loads. The charging system then steps in to refill the battery once the peak demand subsides. If your battery bank is too small, the voltage will drop instantly, stalling your equipment.
Pair high-output units with appropriate AGM or Lithium batteries. These chemistries accept high charge rates without bottlenecking the system. Proper capacity matching ensures the charging system operates efficiently without burning out. Lithium iron phosphate (LiFePO4) batteries can accept massive charge currents, meaning your high-output unit will run at maximum capacity until the battery is full. You must ensure the unit has adequate cooling to survive this prolonged heavy duty cycle.
Conclusion
Calculate your total accessory amperage draw using the watts-to-amps formula to establish your baseline and peak loads.
Inspect your current factory wiring gauge and perform the "Big 3" wiring upgrade using pure copper 1/0 AWG wire.
Map your engine's typical operating RPM to evaluate the required idle output curve before purchasing a new unit.
Select a high-output unit that provides a 20 to 30 percent buffer above your calculated maximum continuous load.
Upgrade your battery bank to AGM or Lithium chemistry to properly absorb transient peak loads and accept high charge rates.
FAQ
Q: Will a higher amperage alternator damage my vehicle's electronics?
A: No. An alternator only supplies the amperage that the electrical system demands. The voltage regulator keeps the voltage within safe limits. Oversizing the amperage capacity simply provides more available headroom for heavy loads without forcing unwanted current into your sensitive electronics.
Q: Why does my voltage drop when I use my winch even with a high-output alternator?
A: Winches create massive transient peak loads that exceed the immediate output capacity of the alternator, especially at idle. The system pulls the deficit from the battery, causing a temporary voltage drop until the load ceases and the charging system catches up.
Q: Do I need to upgrade my battery if I install a larger alternator?
A: Yes, it is highly recommended. High-output units pair best with AGM or Lithium batteries that can accept rapid charge rates. Standard flooded batteries may bottleneck the system and fail to support heavy transient loads effectively.
Q: What is thermal fade in a charging system?
A: Thermal fade occurs when the internal components, specifically the rectifier diodes, heat up under heavy loads. This heat increases electrical resistance, causing the unit's maximum output to drop by 15 to 20 percent compared to its cold rating.
Q: Can I skip the wiring upgrade if I only install a 150A alternator?
A: No. Factory wiring is typically designed for 80 to 100 amps. Pushing 150 amps through stock wires creates severe resistance, leading to voltage drops, melted insulation, and potential engine bay fires. Always upgrade your wiring.
