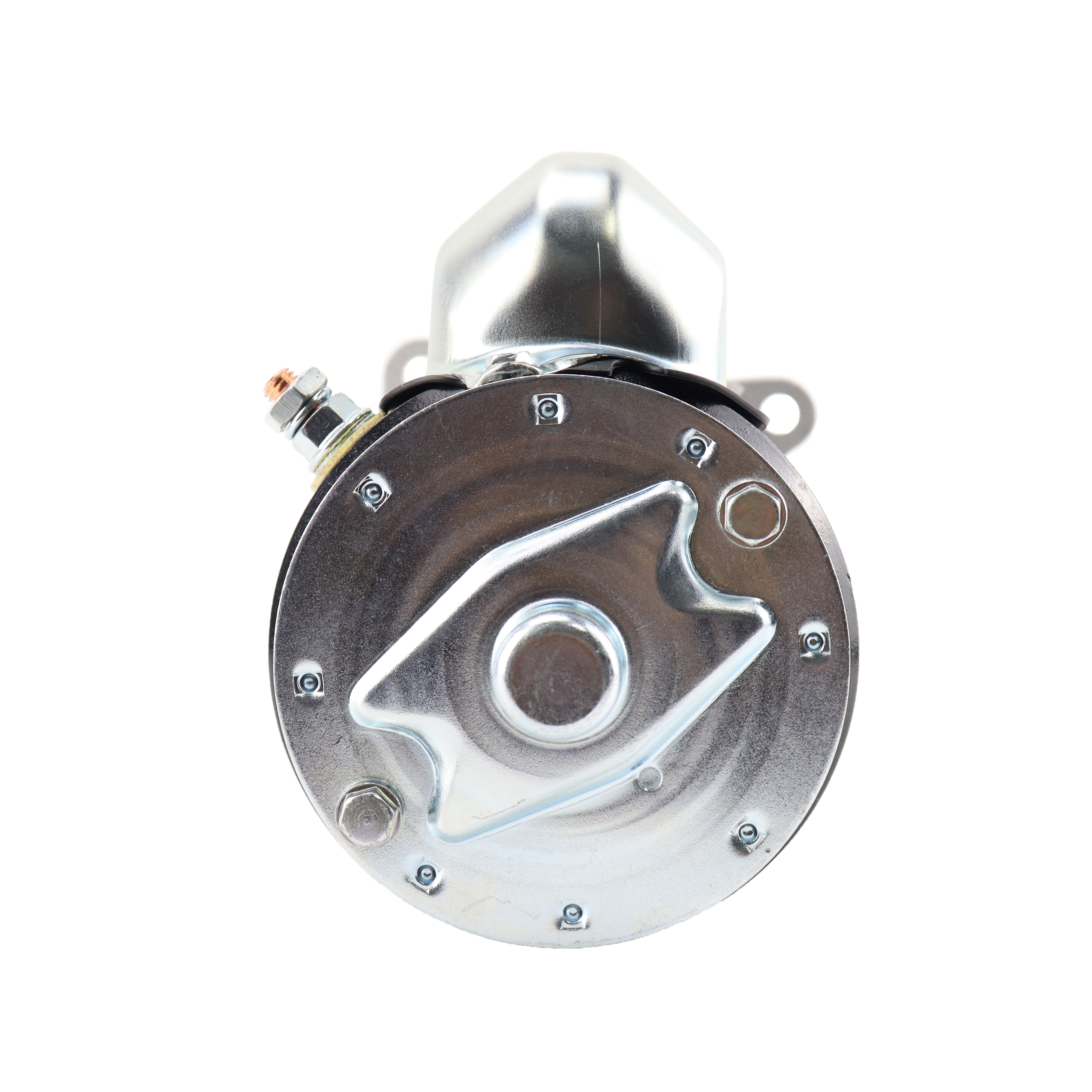

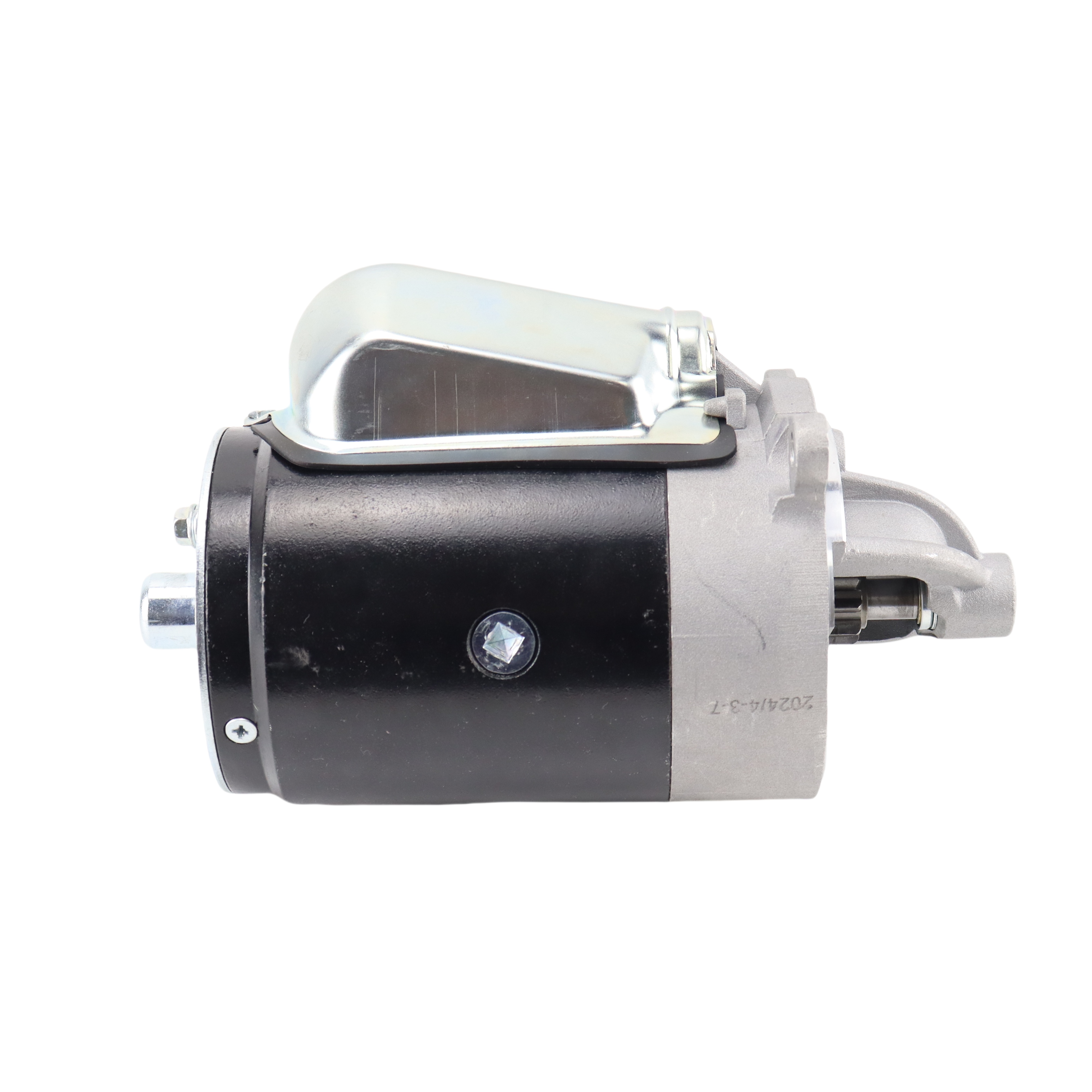

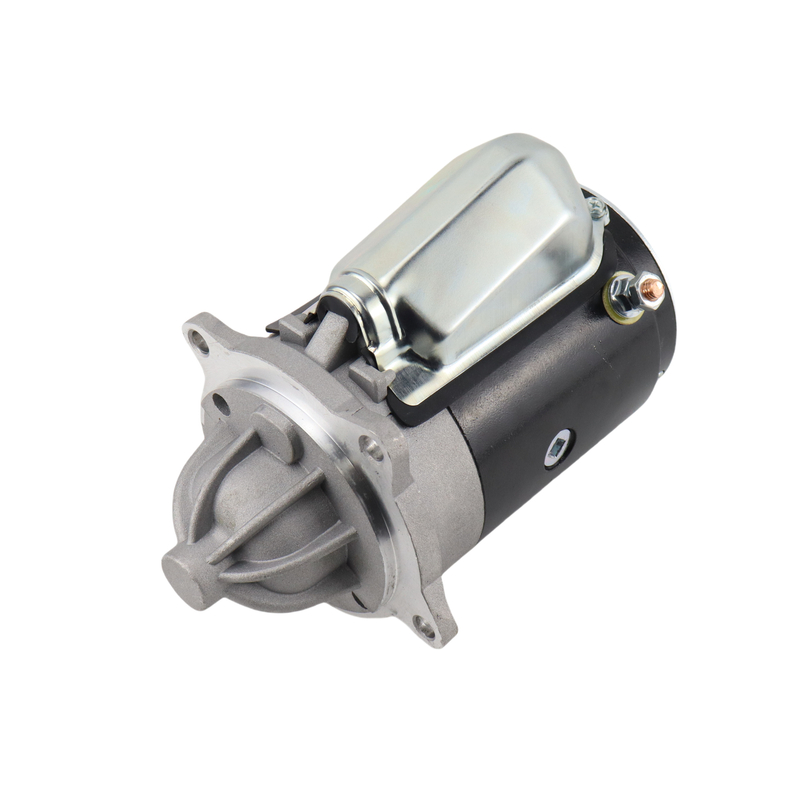

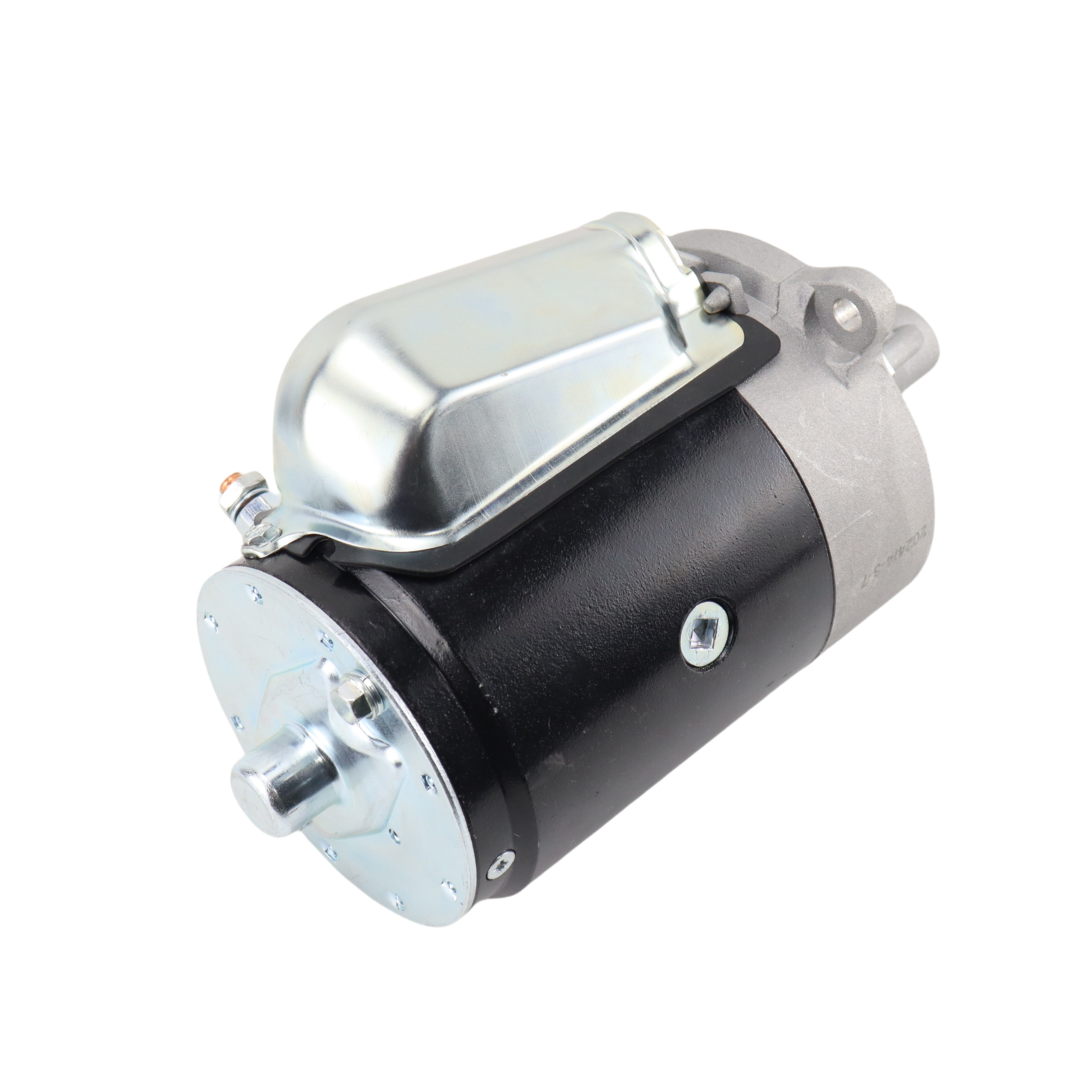

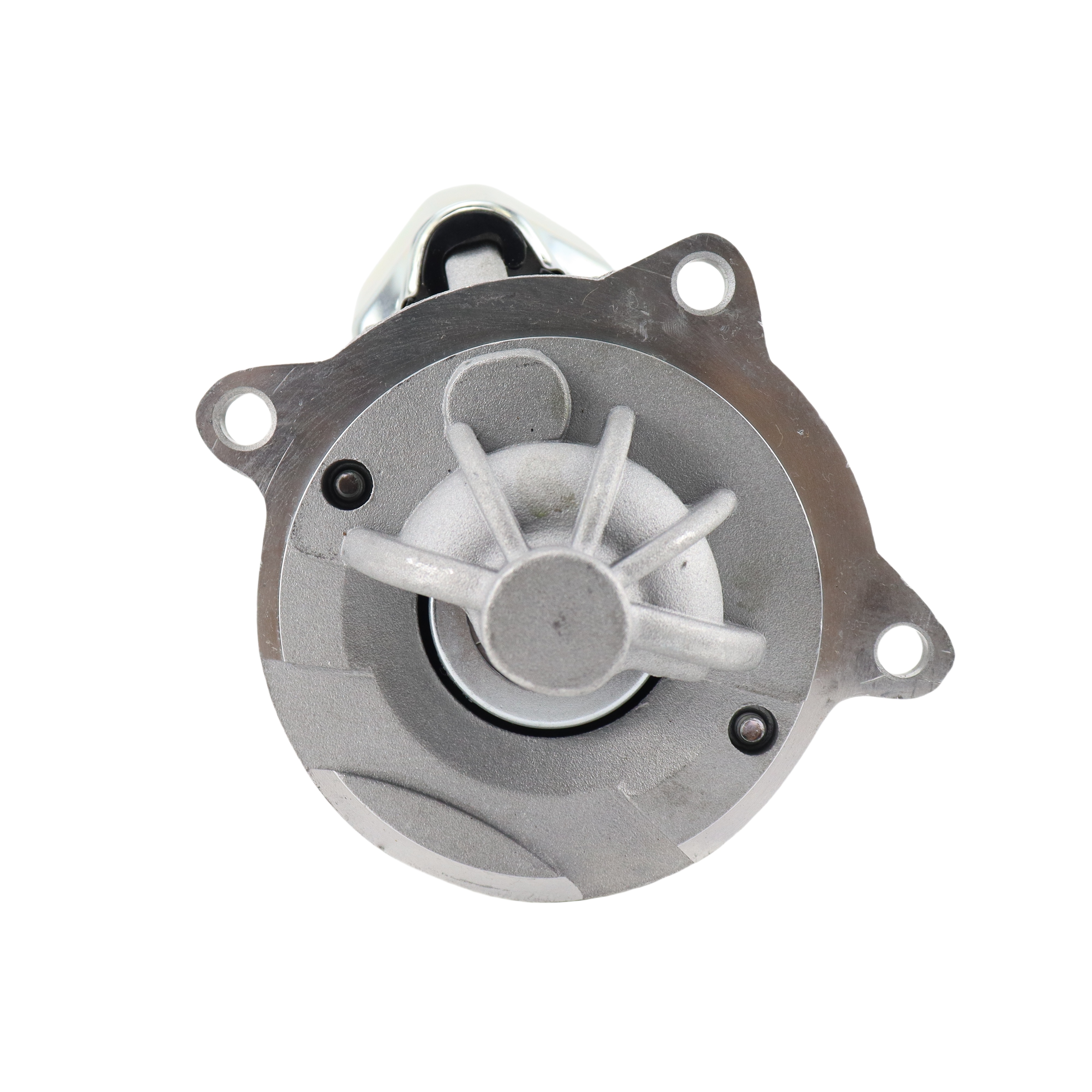

Starter Motor for Ford Lester 3131 OEM C0DF-11001-A 12V 9t 1.1kw

The Main Parameters:

Introduce:

• Ford C4PA engines from 1964 to 1970
• Ford C4PB engines from 1964 to 1970
• Ford C4PC engines from 1964 to 1970
• Ford BRONCO from 1972 to 1977
• Ford CLUB WAGON from 1963 to 1964
• Ford COUNTRY SEDAN from 1962 to 1971
• Ford CUSTOM from 1965 to 1971
• Ford E-SERIES VANS from 1968 to 1970
• Ford FAIRLANE from 1963 to 1967
• Ford FALCON from 1961 to 1968
• Ford F-100 to F-350 PICKUP from 1965 to 1971
• Ford GALAXIE from 1963 to 1965
• Ford GRANADA from 1975 to 1977
• Ford LTD from 1965 to 1971
• Ford MAVERICK from 1970 to 1971
• Ford MONARCH from 1975 to 1977
• Ford MONTCLAIR from 1965 to 1966
• Ford MONTEGO from 1968 to 1969
• Ford MUSTANG from 1965 to 1966
• Ford OLDER MODELS (prior to 1965)
• Ford P-SERIES TRUCKS from 1968 to 1973
• Ford RANCH WAGON from 1962 to 1967
• Ford SUNLINER from 1963 to 1967
• Ford THUNDERBIRD from 1965 to 1967
• Ford TORINO from 1968 to 1969
• Ford VICTORIA from 1963 to 1968
• Ford V70 from 1972 to 1973
• Ford XC70 from 1972 to 1977

This starter motor is designed to minimize downtime and maximize performance, making it an essential component for your vehicle. For any inquiries or assistance, our customer support team is available to ensure you have the best experience with your purchase.

Key Features

• Direct‑Fit OE Replacement: Built to Lester 3131 factory specifications, 4‑1/2" housing with 3 mounting holes and integrated B+ post terminal, no modification required for installation.

• Reliable Cranking Performance: 1.1 kW output combined with 9‑tooth clockwise pinion delivers stable starting torque for inline‑6 and large‑displacement V8 engines, even under cold‑start conditions.

• Heavy‑Duty Internal Components: Equipped with high‑quality armature, field coils, durable brushes and robust solenoid assembly to resist vibration, heat and wear under harsh engine‑bay environments.

• Wide Application Coverage: Works for classic Ford passenger cars, pickups, vans, as well as selected Mercury, Lincoln and Ford industrial equipment.

• Strict Quality Testing: Every unit undergoes bench testing for cranking speed, solenoid operation and electrical continuity before shipment to reduce early‑failure risk.

Important Fitment Note

This starter fits numerous vintage Ford, Mercury, Lincoln cars, light‑medium trucks, vans and Ford‑powered industrial machinery built roughly from the early‑1960s through the mid‑1970s. Fitment tables serve as reference guidance only.

Before purchase please double‑check:

1. Original starter part number (Lester / Ford OEM / aftermarket cross‑number)

2. Physical configuration: mounting hole count, flange style, B+ post terminal, pinion tooth count and rotation direction

3. Vehicle engine code and displacement.

If your housing requires B+ tab terminal instead of B+ post terminal, please refer to Lester 3155 as the alternative version.

Installation Tips

1. Always disconnect the negative battery terminal before starter installation to avoid short‑circuit risk.

2. Clean engine‑block mounting surface to remove rust, oil and debris for flat, stable seating.

3. Align the starter flange properly; tighten mounting bolts evenly in sequence, do not over‑torque.

4. Secure battery main cable and solenoid trigger wire to corresponding terminals; ensure terminals are clean and firmly fastened.

5. After installation, reconnect battery and perform starting test. Listen for abnormal grinding noises, which may indicate pinion‑to‑flywheel clearance issues.

6. Re‑use of old worn mounting bolts is not recommended.

FAQ:

Q1. How long is your delivery time?

A: Generally it takes 45-60 days if the goods are out of stock. If it is in stock, it takes 7 days.

Q2. Do you provide samples ? is it free or extra ?

A: We can provide samples, but we don't take charge of the cost of the sample and the freight cost.

Q3. What are your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q5.How about your warranty?

A:Our warranty is one year.
