What Is the Difference Between 12V and 24V Alternator Applications?

Modern mobile power demands have rapidly outgrown legacy electrical assumptions. Commercial fleets, marine vessels, and off-grid RVs now require massive energy reserves to operate effectively. This shift forces engineers and fleet managers to critically evaluate system voltage before installation. Specifying the incorrect alternator voltage results in compounding inefficiencies across the entire electrical grid. You will face excessive cable weight, severe voltage drop, thermal stress on components, and premature battery bank failure if the system is mismatched.

Selecting between a 12V and 24V system requires a strict technical evaluation of your specific hardware. You must analyze total continuous load, wiring infrastructure limits, and specific application environments. This guide breaks down the engineering trade-offs and integration requirements for both systems. You will learn how to match alternator output to your specific power demands while preventing catastrophic electrical failures in the field.

• Amperage vs. Voltage Trade-off: A 24V system delivers the same total wattage as a 12V system at half the amperage, significantly reducing the required cable gauge and associated copper costs.

• Application Thresholds: A 12V alternator remains the standard for systems under 3,000 watts, while a 24V heavy duty alternator is required for commercial, marine, and high-draw industrial applications to maintain stable charging.

• System Compatibility: Mixing voltages (e.g., charging a 24V battery bank with a 12V alternator) requires specific mitigation hardware, such as DC-DC converters, to prevent system failure.

• Thermal Management: 24V alternators generally operate with higher efficiency and lower thermal output per watt delivered, extending component lifespan in continuous-duty cycles.

Core Technical Differences in Alternator Design

Problem Framing

Understanding the baseline physics of power generation is required before evaluating system upgrades or replacements. You cannot simply swap components without understanding how voltage and amperage interact under load. Many electrical failures stem from a fundamental misunderstanding of how an Alternator generates and pushes current into a battery bank. Mechanics often overlook the relationship between rotor speed, stator winding density, and the resulting thermal load on the diode bridge.

When you upgrade a vehicle's electrical system, the power generation unit must match the storage capacity and the draw of the accessories. Failing to calculate the continuous draw leads to burned stators and melted wiring harnesses. We see this constantly in custom marine builds where owners add high-draw inverters without upgrading the charging source.

Voltage Output and Ohm’s Law

Power is measured in watts. Watts equal volts multiplied by amps. If you double the voltage, you halve the current required to deliver identical power. A 2,400-watt load pulls 200 amps on a 12V system. That same load pulls only 100 amps on a 24V system. This reduction in amperage directly impacts internal stator windings and diode bridge configurations. Lower amperage means less heat generation across the internal diodes.

Heat is the primary enemy of any electrical generation component. When you push 200 amps through a standard casing, the internal temperatures can easily exceed 200 degrees Fahrenheit. This bakes the insulation on the copper windings. By stepping up to 24V, you cut that thermal load in half for the exact same power output, drastically improving the survival rate of the components.

Internal vs. External Regulation

Voltage regulators manage the output of the alternator to prevent battery damage. Internal regulators sit inside the casing and monitor voltage directly. They are exposed to extreme engine heat and vibration. External regulators mount away from the heat source on a bulkhead or firewall. They offer programmable charge profiles tailored to specific battery chemistries like AGM or Lithium Iron Phosphate.

You can identify an externally regulated 24V versus 12V unit by testing terminal voltages under load. Checking the ignition (IGN) and stator/sense (S) terminals helps diagnose regulation faults quickly in the field. External units allow you to throttle the field current, which is mandatory when charging large lithium banks that will otherwise pull maximum amperage until the alternator burns itself out.

Uncontrolled Voltage Profiles

An uncontrolled or failed regulator impacts voltage limits severely. If a 12V regulator fails closed, the alternator can spike up to 24V or higher. This fries sensitive 12V electronics instantly, blowing out navigation screens, engine control modules, and lighting circuits. The damage is immediate and irreversible.

Conversely, an uncontrolled 24V alternator can quickly exceed critical safety limits, pushing 40V+ into the system. This causes battery boiling, off-gassing of hydrogen, and immediate component destruction. Installing over-voltage protection relays is a standard practice in commercial marine applications to prevent these catastrophic spikes from reaching the distribution panel.

Rotor and Stator Variations

Physical construction dictates output capabilities. A 12V and 24V unit might share identical external casing sizes, utilizing the same mounting pad and belt alignment. However, the internal copper winding density dictates the voltage and continuous amperage ratings. A 24V stator uses thinner wire with more turns around the iron core.

This configuration generates higher voltage at lower shaft RPMs compared to a 12V equivalent. The rotor also features different winding specifications to create the appropriate magnetic field strength. You cannot simply swap a 12V regulator onto a 24V stator and expect it to function; the internal impedance and magnetic characteristics are entirely different.

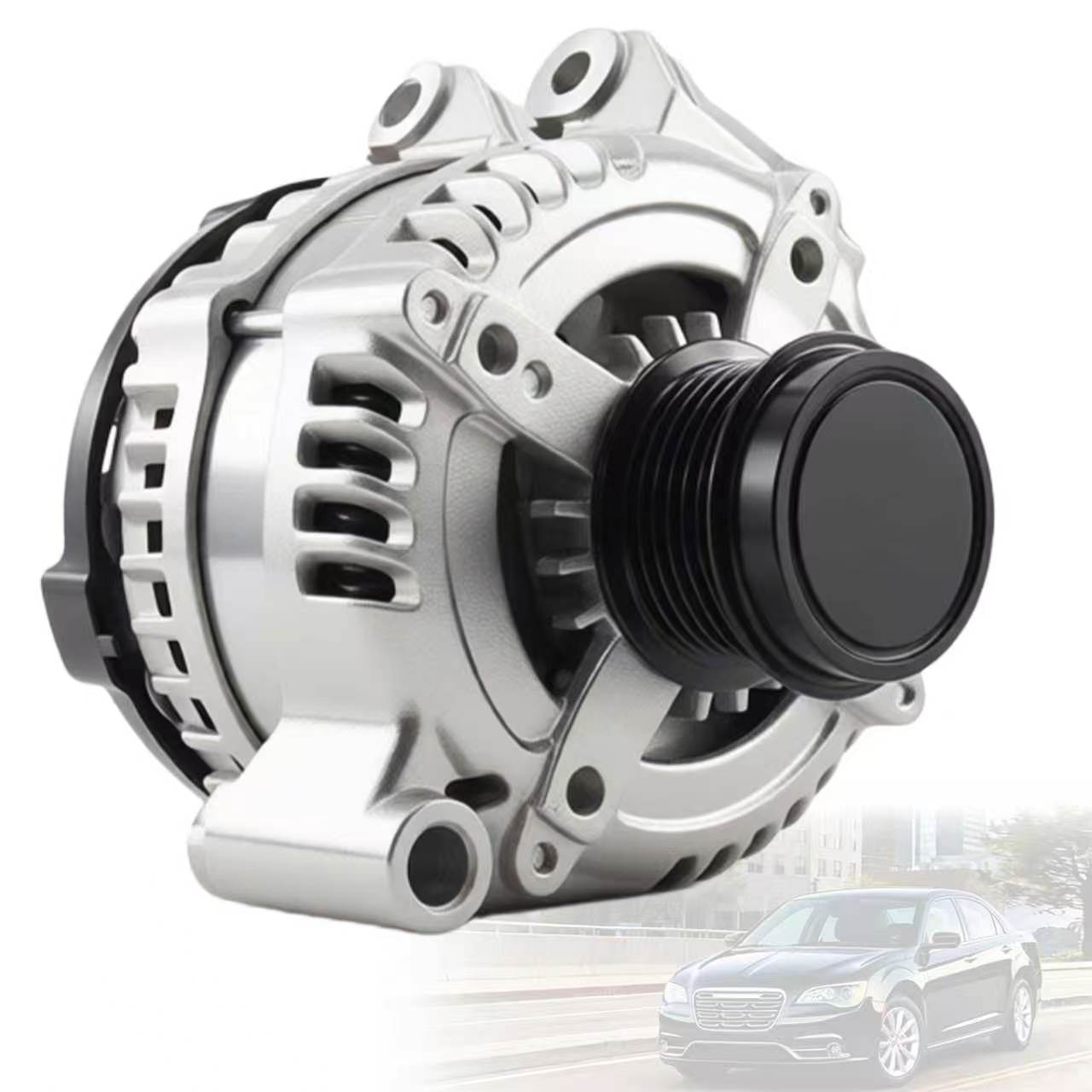

Evaluating 12V Alternator Systems

Solution Category 1

The 12V system remains the legacy standard for light-duty and consumer applications. Almost every passenger vehicle and light truck utilizes this architecture. It is reliable for standard starting, basic accessory loads, and short wire runs. The automotive industry standardized on this voltage decades ago, creating a massive global supply chain.

For most standard vehicles, upgrading beyond 12V is unnecessary and overly complicated. The factory wiring harnesses, relays, and starter motors are all designed around a 12V nominal baseline. Modifying these vehicles requires replacing nearly every electrical component on the chassis.

Optimal Use Cases

Standard automotive, light marine, and basic RV setups thrive on 12V architecture. These environments rarely see total continuous DC loads exceeding 200 amps. A standard 12V Alternator handles engine management, lighting, and basic climate control without issue. Short wire runs in these vehicles prevent noticeable voltage drop.

When outfitting a standard overland vehicle or a weekend fishing boat, 12V is perfectly adequate. You can run a 12V fridge, some LED light bars, and a standard marine radio without stressing the factory charging system. The key is keeping the total continuous draw well below the alternator's maximum rated output.

Component Availability

The ubiquity of 12V parts makes emergency replacements highly accessible. You can find a replacement 12V unit at almost any auto parts store globally. Standard maintenance remains cost-effective. Relays, fuses, and breakers rated for 12V are cheap and plentiful.

1. Locate the nearest auto parts supplier or marine chandlery.

2. Match the casing style and pulley type to your existing unit.

3. Verify the amperage rating meets or exceeds your factory specification.

4. Install the replacement using standard hand tools.

This level of accessibility is a massive advantage for vehicles operating in remote areas. If a 24V specialized unit fails in a small town, you might wait days for a replacement to ship. A 12V unit can usually be sourced and installed the same afternoon.

Limitations in High-Draw Environments

12V systems fail under heavy, continuous loads. Pushing 300 amps at 12V generates massive heat. Excessive heat destroys internal diodes and regulator circuits. Severe voltage drop occurs over long cable runs, starving rear-mounted batteries. High-output 12V casings face physical thermal limits when forced to run high-horsepower DC accessories like winches or anchor windlasses.

When you try to pull 3,000 watts through a 12V system, you need cables as thick as your thumb. Routing 4/0 AWG cable through a vehicle frame is difficult, expensive, and adds significant weight. Furthermore, the voltage drop over a 20-foot run at 12V can be severe enough to prevent a rear battery bank from ever reaching a full charge state.

Evaluating 24V Alternator Systems

Solution Category 2

High-efficiency power generation demands 24V architecture. Commercial and industrial applications rely on this higher voltage to move massive amounts of energy reliably. When downtime costs thousands of dollars per hour, equipment manufacturers abandon 12V systems in favor of robust 24V platforms.

This voltage standard is prevalent in heavy machinery, aviation, and military applications. The ability to transmit power over longer distances with smaller cables makes it the only logical choice for large chassis vehicles and vessels.

Heavy Duty Alternator Applications

Transit buses, commercial marine vessels, and large-scale off-grid mobile systems require a Heavy Duty Alternator. Agricultural machinery heavily utilizes 24V systems for reliable cold-weather starting. Many vintage tractor conversions, such as John Deere 4020 systems, transition from legacy generator setups to modern 24V alternators to maintain original starter compatibility while improving charge reliability.

In a commercial marine setting, a 24V system powers bow thrusters, massive hydraulic pumps, and large inverter banks. A 12V system would simply melt under these loads. The 24V heavy-duty units are built with massive bearings, heavy-duty rectifiers, and superior cooling fans to survive continuous duty cycles in hot engine rooms.

Wiring and Infrastructure Efficiency

A 24V system drastically reduces required cable sizing. You can often drop from a massive 4/0 AWG cable down to a 1/0 AWG cable for the same wattage. Thinner, lighter wires simplify routing through tight vehicle chassis. This reduces total vehicle weight. It also drastically cuts copper procurement costs for large fleet builds.

Consider a 30-foot run from the engine room to the house battery bank on a yacht. At 12V, pushing 150 amps requires parallel runs of massive cable to keep voltage drop under 3%. At 24V, you only push 75 amps, allowing for a single, much smaller cable run. The labor savings during installation alone often justify the upgrade.

Charge Controller and Inverter Economics

Higher voltage cuts solar charge controller costs in half. A 50-amp controller handles 600 watts at 12V, but 1,200 watts at 24V. You double the wattage capacity per controller. High-capacity AC inverters also operate more efficiently at 24V. They draw half the DC current, which keeps internal inverter temperatures lower during heavy AC loads.

When building an off-grid RV with 2,000 watts of solar, a 12V system requires multiple charge controllers wired in parallel. A 24V system handles that entire array on a single, high-quality controller. This simplifies the wiring schematic, reduces potential failure points, and cleans up the electrical bay installation.

System Architecture and Cross-Voltage Compatibility

Evaluation Dimensions

Integrating alternators into complex, split-voltage, or legacy battery banks requires careful planning. You must manage voltage differentials to avoid causing catastrophic electrical failures. Direct connections between mismatched voltages will destroy equipment instantly.

Engineers must map out the entire DC grid before ordering parts. You need to identify every 12V load and every 24V load. Once the loads are mapped, you can determine the most efficient way to generate and distribute the power without relying on inefficient conversion methods.

Charging 24V Banks with a 12V Alternator

You cannot connect a 12V charging source directly to a 24V battery bank. You must use a 12V-to-24V DC-DC battery charger. This device steps up the voltage. However, this workaround introduces efficiency losses. DC-DC chargers have strict thermal limits and charging rate bottlenecks. A 30-amp DC-DC charger will pull roughly 60 amps from your 12V alternator, generating significant heat.

This setup is common in vans where the factory engine is 12V, but the house system is 24V. While functional, it places a massive strain on the factory alternator. You must ensure the factory unit has the spare capacity to run the vehicle and feed the DC-DC charger simultaneously, especially at idle.

Dual Voltage DC Systems

Some architectures require both 12V and 24V systems. You might have a heavy-duty 24V starter paired with 12V house electronics. You face an engineering choice. You can trade a 24V motor for a same-horsepower 12V motor. Alternatively, you can add a secondary 12V battery bank with a split-charge isolator. Installing dual-alternator systems—one 12V and one 24V—often provides the most reliable separation of power.

Battery Bank Configurations

Charging two 12V batteries wired in series with a standard 24V alternator carries risks. If you tap into just one of those 12V batteries for accessories, you create an imbalance. The alternator reads the total 24V series voltage. It will overcharge the full battery and undercharge the tapped battery. You must use battery balancers to prevent uneven charging, cell mismatch, and rapid sulfation.

Never pull a 12V load from the middle of a 24V series bank. Always use a 24V to 12V step-down converter connected to the main 24V positive and negative terminals. This ensures the batteries discharge evenly, maintaining the balance required for the alternator to charge them correctly.

Cost-to-Performance Analysis

Overall Value Influencing Factors

You must balance upfront capital expenditure against long-term operational reliability. Cheaper initial parts often lead to expensive field failures. Evaluating the complete system installation reveals the true financial impact of your voltage choice.

A system that fails in a remote location costs far more in towing and downtime than the price of premium components. When specifying parts for commercial fleets, reliability always supersedes initial purchase price. A robust charging system pays for itself by keeping the vehicle in service.

Initial Component Costs

A high-output 12V alternator often costs more than a standard 24V unit of the same wattage. Generating 250 amps at 12V requires specialized oversized diodes and custom hairpin stators. Generating 125 amps at 24V uses standard, off-the-shelf heavy-duty components. The 24V unit is inherently cheaper to manufacture per watt.

Custom high-output 12V units are niche products built for the aftermarket. Standard 24V units are mass-produced for the commercial trucking and heavy equipment industries. This economy of scale makes the 24V components highly cost-competitive, even when factoring in the required mounting modifications.

Infrastructure Savings

Calculate the total cost of installation. A 24V system provides massive savings on infrastructure. You buy smaller gauge wiring. You use lighter copper lugs. You install lower-rated, less expensive fuses and breakers. In a large marine vessel or custom RV build, these wire and component savings often offset the cost of the alternator entirely.

• Measure the total cable run length required for the build.

• Price out 4/0 AWG cable versus 1/0 AWG cable for that length.

• Compare the cost of 300-amp fuses versus 150-amp fuses.

• Factor in the labor time saved by routing smaller, more flexible cables.

Lifecycle and Maintenance

Analyze the operational lifespan. High amperage destroys alternators through thermal degradation. Because 24V systems push half the amps for the same power, they run significantly cooler. Lower operating temperatures preserve the grease in the bearings and protect the diode rectifier bridge. This leads to longer intervals between rebuilds or replacements.

In a commercial setting, a 12V high-output unit might require a rebuild every two years due to heat stress. A properly specified 24V unit in the same application can easily last five to seven years. The reduction in maintenance labor and vehicle downtime makes the 24V system the clear winner for continuous duty applications.

Implementation Risks and Mitigation Strategies

Risk 1: Voltage Drop Miscalculations

Failing to properly size cables leads to undercharged batteries. Even in 24V systems, undersized wires cause resistance. Resistance creates heat and drops the voltage reaching the battery terminals. If the alternator outputs 28.8V but the battery only sees 27.2V, the bank will never reach 100% state of charge. Mitigation: Strict adherence to ABYC or SAE wiring charts based on round-trip circuit length is mandatory. Always calculate the total distance from the alternator to the battery and back to the engine ground.

Risk 2: Alternator Burnout

Connecting a high-output alternator to a deeply discharged lithium battery bank without proper regulation is dangerous. Lithium batteries accept massive charge currents until they are nearly full. This forces the alternator to run at maximum output continuously, leading to rapid burnout. The internal cooling fans cannot dissipate the heat fast enough at low engine RPMs. Mitigation: Implement external regulators with alternator temperature sensors. These sensors throttle the field current to reduce output when the casing gets too hot.

Risk 3: Uncontrolled Voltage Spikes

Load dumps occur if a battery disconnects while the alternator is charging at high output. The sudden loss of the battery load causes the alternator voltage to spike violently. This spike destroys connected electronics instantly. A loose battery terminal or a tripped BMS on a lithium battery can trigger this event. Mitigation: Install alternator protection devices (APDs). Utilize advanced regulators with fault-state management to cut field power before a spike damages the system.

Conclusion

The choice between a 12V and 24V alternator is dictated by total wattage demands and the physical distance between the power source and the battery bank. Do not guess your power requirements. Measure your continuous loads and design the system around those hard numbers. Upgrading to a higher voltage solves thermal and distribution problems that 12V systems simply cannot handle.

• Audit your current DC load requirements by listing every accessory and its continuous amp draw.

• Calculate your required cable lengths and use an engineering chart to determine voltage drop percentages.

• Consult with a marine or automotive electrical engineer to specify the correct alternator output curve.

• Install external regulation with temperature monitoring if you are charging lithium battery banks.

FAQ

Q: Can a 12V alternator charge a 24V battery bank?

A: Yes, but not directly. You must install a 12V to 24V DC-DC converter between the alternator and the battery bank. The converter steps up the voltage. However, this method is limited by the amperage rating of the DC-DC charger and generates additional heat.

Q: Why does a 24V system use thinner wires than a 12V system?

A: Ohm's Law dictates that power (watts) equals voltage multiplied by current (amps). By doubling the voltage from 12V to 24V, you halve the current required to deliver the same wattage. Lower current allows for thinner, less expensive wire gauges without causing overheating.

Q: How can I tell if my alternator is 12V or 24V?

A: Check the data plate on the casing first. If it is missing, use a multimeter. With the engine running, measure the voltage at the main output terminal. A 12V system will read roughly 13.5V to 14.4V. A 24V system will read between 27V and 28.8V.

Q: Is a 24V heavy duty alternator more efficient than a high-output 12V alternator?

A: Yes. A 24V unit operates with higher thermal efficiency. Generating high amps in a small 12V casing creates massive internal resistance and heat. The 24V unit delivers the same total power at half the amperage, keeping internal diodes and windings significantly cooler.

Q: Can I run a dual voltage system with a single alternator?

A: Yes. You can use a 24V alternator to charge a 24V bank, and then use a 24V to 12V step-down converter to run your 12V electronics. Alternatively, you can use a 12V alternator and a DC-DC step-up charger for the 24V components.
