| Property | Value |
| Brand | VALEO |
| Voltage (V) | 12 |
| Amperage (A) | 130 |
| Rotation | CW |
| Pulley Type | Fixed |
| Pulley Grooves | 6 |
| Pulley Diameter (mm) | 63.5 |
Introduce:

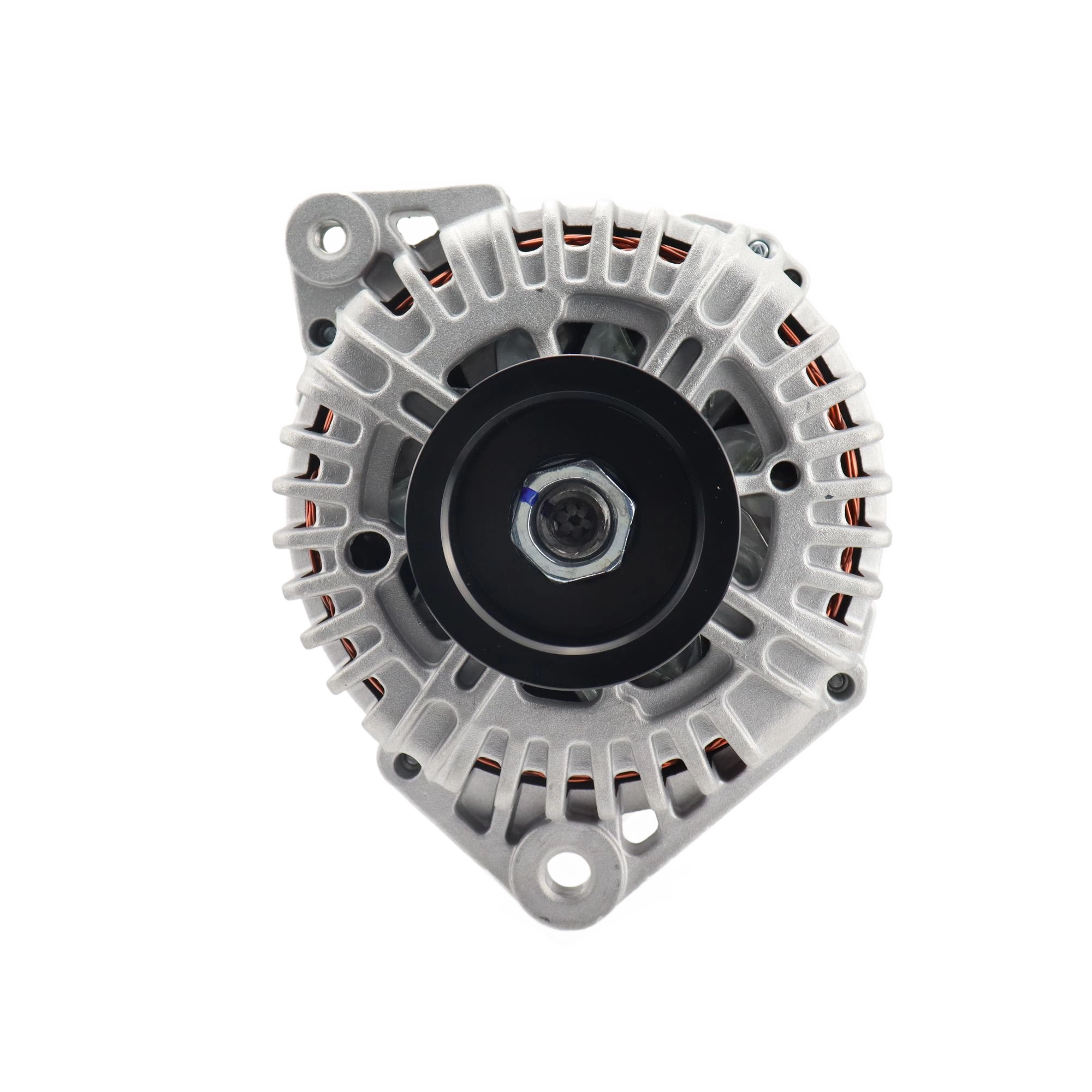

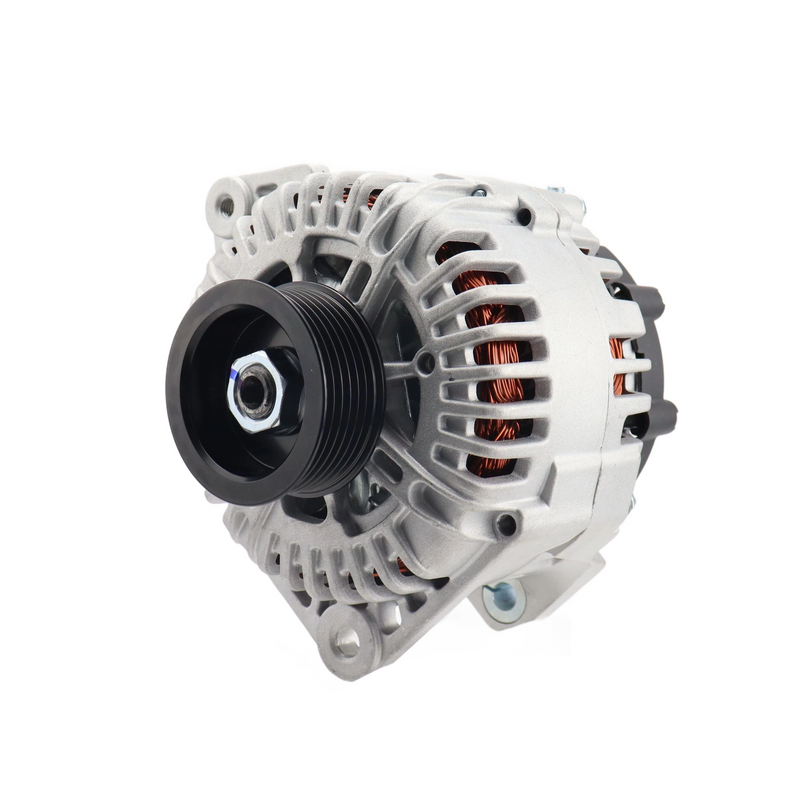

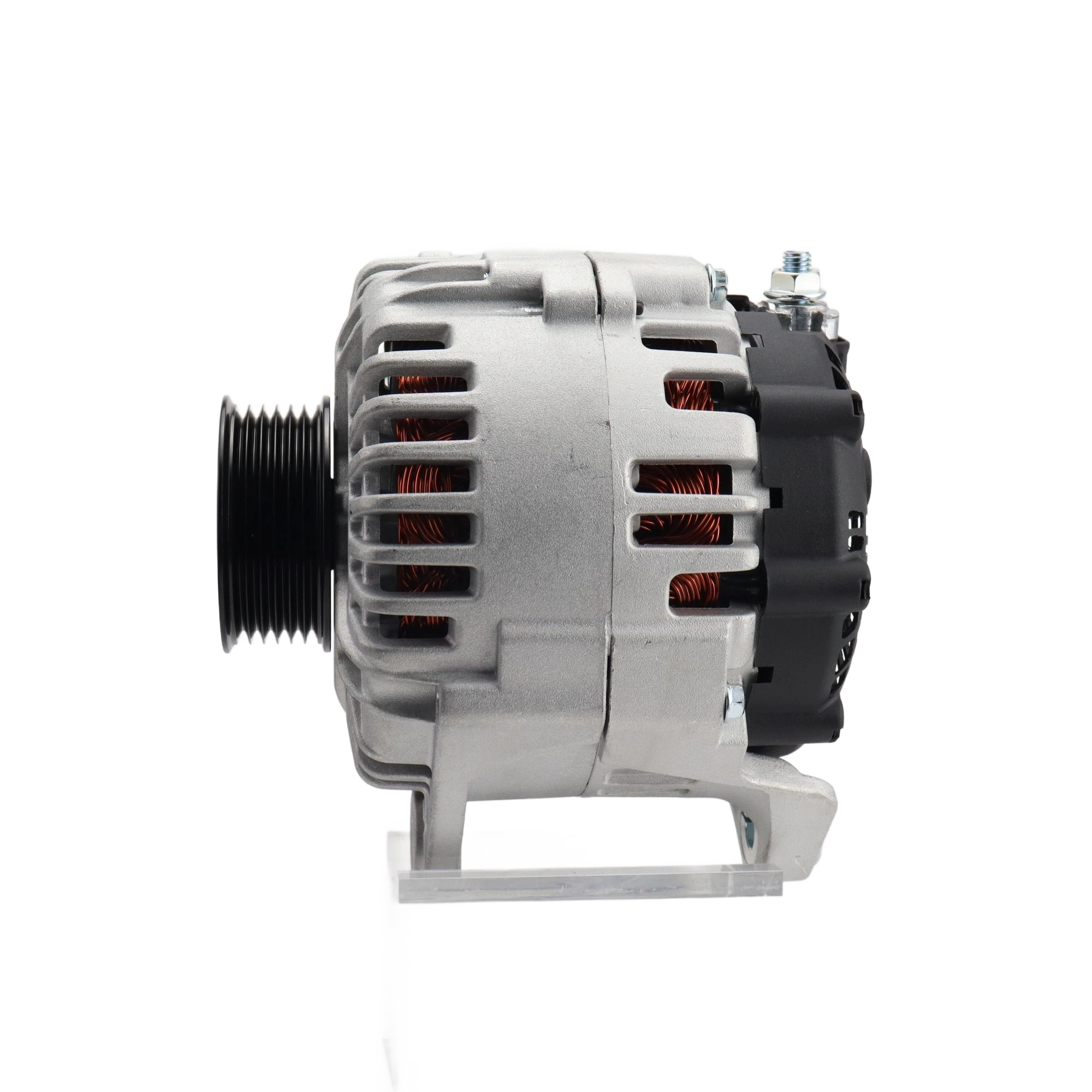

The VALEO alternator, specified by the OEM number TG15C026, is a high-performance 12V, 130A unit that ensures your vehicle's electrical systems are powered reliably. It's equipped with a clockwise rotation mechanism and a fixed pulley with six grooves, designed to fit a 63.5mm pulley diameter, making it compatible with a wide array of vehicle models, notably the NISSAN QUEST from 2004 to 2009.
This alternator includes a sophisticated generator regulator that dynamically adjusts the excitation current in response to generator speed fluctuations. This feature is crucial as it maintains a stable voltage output, safeguarding against overvoltage that could harm electrical components or lead to battery overcharging, and undervoltage that might cause equipment failure or inadequate battery charging.
Direct Bolt-On OEM Matching Mount Structure

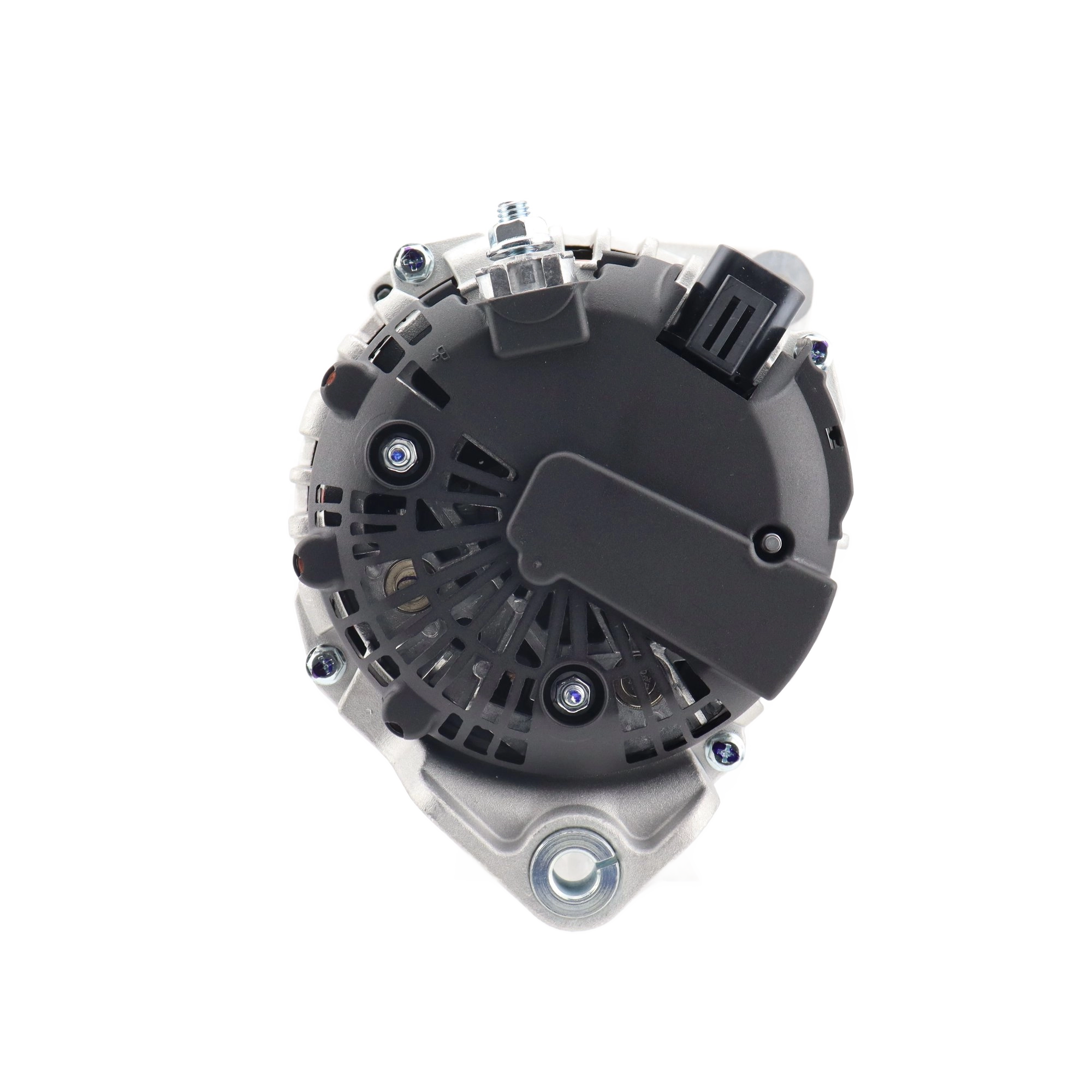

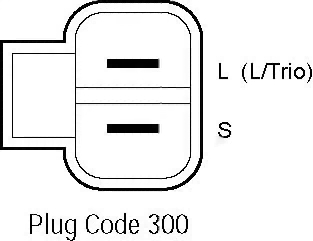

No cutting, drilling or extra modification is required during installation, fully matching the factory mounting standards of Nissan Quest. It comes with 3 precision machined mounting ears: Ear 1 with M8×1.25 threaded hole, Ear 2 & Ear 3 with 10.2mm unthreaded holes, paired with a standard M8×1.25 B+ terminal and factory 2-blade plug interface. The Clock 1 positioning and CW rotation perfectly align with the original engine layout, cutting down your garage’s installation time greatly.
Extensive Cross Reference Compatibility
This Valeo TG15C026 alternator carries rich interchangeable part numbers for global aftermarket supply. Its core cross reference number Lester 11018 covers dozens of mainstream aftermarket brands, including Arrowhead, J & N, NAPA, WAI, Remy, Wilson, Wagner and the original Nissan OE part 23100-5Z000. One single unit replaces multiple SKUs, simplifying your inventory management and vehicle repair matching work.
Heavy-Duty High Amp Output for Full Vehicle Electrical Loads
Rated at 145A high amperage, this alternator delivers sufficient stable power even at idle speed. It easily supports all onboard electrical accessories of Nissan Quest, including air conditioning, lighting systems, infotainment devices and auxiliary electronics, eliminating dim lights, slow battery charging or low-power warnings during daily commutes and long-distance trips.
Strict OEM Standard Manufacturing
Produced under genuine VALEO original production specifications, every unit undergoes complete electrical performance, rotation and heat cycle testing before delivery. All internal coils, rectifiers and bearing parts adopt premium raw materials, delivering consistent performance equivalent to the original factory alternator.
We stand behind our product with a 1-year quality assurance period, providing you with confidence in the reliability and efficiency of your vehicle's charging system.
Wide Application
Custom engineered as a direct replacement alternator for 2004–2009 NISSAN QUEST minivan, suitable for auto repair shops, wholesale parts distributors and vehicle DIY maintenance use.
FAQ:
Q1. How long is your delivery time?
A: Generally it takes 45-60 days if the goods are out of stock. If it is in stock, it takes 7 days.
Q2. Do you provide samples ? is it free or extra ?
A: We can provide samples, but we don't take charge of the cost of the sample and the freight cost.
Q3. What are your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5.How about your warranty?
A:Our warranty is one year.
