Does A One Wire Alternator Need A Voltage Regulator?

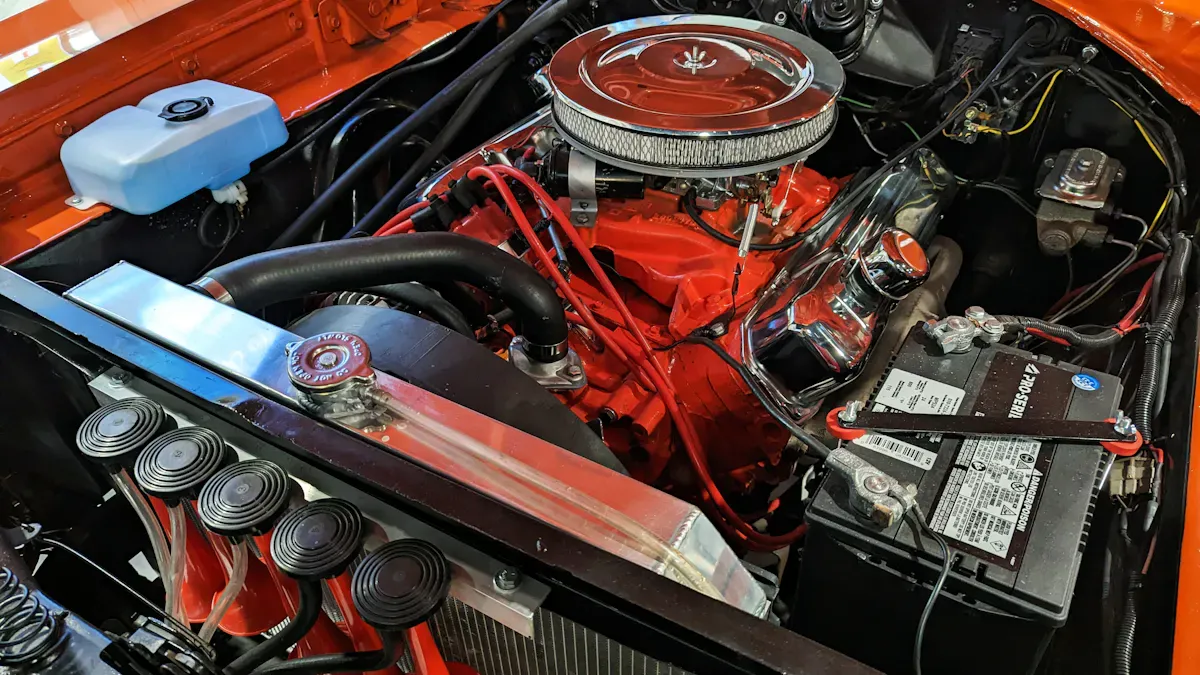

Upgrading the electrical system on a classic car, hot rod, or custom build often leads to simplifying the engine bay wiring. Builders frequently seek cleaner aesthetics and fewer failure points. This brings up a critical question regarding external versus internal regulation. A common myth suggests these simplified charging units operate without any regulation at all. The truth is quite different. A one wire alternator does not need an external voltage regulator, but it absolutely relies on an internal one. This article provides a transparent, engineering-based look at how these units regulate voltage. We examine the physical risks of leaving legacy parts connected in the circuit. You will also learn how to evaluate whether this simplified charging system is the right choice for your specific build’s electrical load.

Key Takeaways

• Internal Regulation: A one wire alternator features a built-in, self-exciting voltage regulator, eliminating the need for firewall-mounted external regulators.

• Legacy Conflicts: Existing external regulators must be physically disconnected or bypassed during conversion to avoid charging system conflicts.

• Voltage Sensing Limitations: Unlike 3-wire setups, pure 1-wire systems read voltage directly at the alternator, which can lead to undetected voltage drops at the main electrical junction.

• Wiring Safety: Converting to a high-output 1 wire alternator requires bypassing old bulkhead connectors and using heavy-gauge, heat-resistant wiring (e.g., 4 AWG to 8 AWG GXL/SXL).

The Mechanics of a 1 Wire Alternator Voltage Regulator

Many automotive enthusiasts misunderstand the naming convention behind modern charging systems. The term "one wire" strictly refers to the external connections required to link the unit to the vehicle battery. It does not mean the internal components lack complexity. These units utilize an internal, self-exciting voltage regulator.

When you install a 1 wire alternator, you eliminate the tangled harness previously required for operation. The internal regulator handles all the heavy lifting. It monitors the output directly at the charging stud. It adjusts the magnetic field strength inside the rotor to keep power levels stable.

The Wake-Up Threshold

A standard factory alternator receives a keyed 12-volt signal to turn on. A self-exciting regulator works differently. It relies on residual magnetism stored within the rotor. To wake up and start producing power, the alternator requires a specific rotor RPM. This threshold typically sits around 1,200 engine RPM.

When you start a cold engine, the dashboard voltmeter might show only 12 volts initially. You must blip the throttle briefly. Once the engine crosses that 1,200 RPM threshold, the internal regulator activates the magnetic field. You will immediately see the gauge jump to an active charging state.

Best Practice: Select pulleys carefully. If you install an under-drive pulley system, you reduce alternator RPM. This modification can push the wake-up threshold uncomfortably high, forcing you to aggressively rev the engine at every startup.

Continuous Operation

Once the system triggers, the self-exciting regulator takes full control. It maintains a consistent output, usually between 13.8V and 14.2V. The alternator will continue charging perfectly even when engine speeds drop back to idle. It does not shut off until you turn off the ignition and the rotor stops spinning.

Why You Must Bypass the Factory External Voltage Regulator

Classic vehicles, particularly vintage Mopar and Ford platforms, left the factory with external mechanical or electronic voltage regulators. These devices usually sit mounted to the firewall or inner fender. If you upgrade your charging system, you cannot leave these legacy parts active.

The Electrical Conflict

A severe technical failure occurs if you wire a modern unit into a system still linked to an old external regulator. The two regulators will fight for control over the charging loop. The external regulator attempts to read system voltage and adjust an alternator it no longer controls. Meanwhile, the new internal regulator operates independently. This loop creates immense electrical feedback.

Common Mistake: Leaving the original wiring harness plugged into the old firewall regulator. Even if the wires do not directly connect to the new alternator, they can create parasitic battery drains or cross-feed power back into the ignition system.

Bypass Protocol

You must completely remove the old regulation hardware from the active circuit. Follow this standardized bypass protocol:

1. Identify the legacy wiring harness: Locate the external regulator box and trace the multi-wire harness back to the main junction block.

2. Disconnect power: Always disconnect the negative battery terminal before cutting or modifying old harnesses.

3. Physically isolate the wiring: Unplug the connector from the external regulator.

4. Tape off or remove: We highly recommend removing the obsolete wiring entirely from the loom. If removal proves impossible, cap every exposed terminal with heat-shrink tubing and secure them out of the way.

Warning: Failure to execute this bypass protocol can result in dangerous overcharging. It often leads to immediate, irreversible damage to the new alternator's internal diode trio.

Evaluation Criteria: 1-Wire vs. 3-Wire Alternator Systems

Automotive builders constantly weigh installation simplicity against precision electrical management. You must evaluate the specific needs of your vehicle before committing to a setup.

The Voltage Sensing Deficit (1-Wire)

Simplicity comes with a distinct engineering compromise. These systems sense voltage only at the alternator casing. They measure the power right where they produce it. They do not know what happens to that power after it travels through the car.

If old wiring resistance creates a 2-volt drop across the vehicle, the main fuse panel might only see 12 volts. The alternator remains unaware of this deficit. It firmly believes it is outputting 14 volts. It will not compensate for the loss. This deficit leads to dim headlights, sluggish electric fans, and weak ignition sparks. A mere 10% voltage drop can cause a massive 30% loss in accessory performance.

The Dynamic Compensation Advantage (3-Wire)

Three-wire systems excel at precision. They utilize a dedicated remote voltage-sensing wire routed directly to the main power junction. This wire acts as a scout.

If the scout wire detects only 12 volts at the fuse box due to line resistance, it commands the internal voltage regulator to work harder. The alternator might briefly output 15.5 volts at the casing to guarantee an exact 14-volt delivery at the accessories. They dynamically increase output to overcome physical wire resistance.

Dashboard Feedback Limitations

Older vehicles rely on a dashboard "idiot light" to warn drivers of charging system failures. Pure one wire setups generally cannot trigger this factory charging fault indicator. They lack the dedicated terminal required to complete the dash light circuit. If you choose the single-wire route, you must install an accurate aftermarket voltmeter to monitor system health safely.

System Comparison Table

Implementation Risks and Installation Realities

Adding a high-output charging unit demands serious infrastructure upgrades. You cannot bolt a 150-amp powerhouse into a harness designed for a 40-amp factory unit. Doing so invites catastrophic failure.

Wiring Bottlenecks and Fire Hazards

Never reuse standard 14-gauge factory wires for modern high-output units. The original wiring lacks the copper mass required to transport heavy current. When heavy current squeezes through a tiny wire, it generates extreme heat. This heat melts insulation and starts electrical fires.

Old bulkhead connectors present another major hazard. Classic cars often routed total alternator output through a multi-pin plastic bulkhead connector at the firewall. These plastic blocks will melt under high-amperage loads. You must establish a parallel charging path. Run a heavy-gauge cable directly from the alternator output stud to the battery positive terminal, or to the main starter solenoid lug. This bypasses the fragile factory bulkhead entirely.

Heat-Rated Insulation

Engine bays expose wiring to punishing thermal conditions. Headers, engine blocks, and radiators generate intense ambient heat. You must mandate the use of automotive-grade GXL or SXL wiring. These specialized cross-linked polyethylene wires boast a temperature rating of 125°C (257°F) or higher.

Standard GPT wire, commonly sold in big-box auto parts stores, melts at much lower temperatures. Using GPT wire anywhere near an exhaust manifold practically guarantees a short circuit.

The Grounding Trap

Electrical circuits require a complete loop to function. The positive cable pushes power out, but the ground path pulls it back. These specialized alternators ground directly through their casing to the engine block via the mounting brackets.

Implementation Risk: Builders often paint their engine blocks, powder coat their brackets, or use heavy chrome plating. These beautiful finishes act as powerful electrical insulators. They severely restrict ground paths. If the regulator cannot find a clean ground, it will spike voltage erratically or refuse to charge altogether. You must install a dedicated ground strap connecting the alternator casing directly to the engine block or frame rail.

Sizing and Shortlisting: Choosing the Right Output

Choosing the correct amperage output ensures long-term reliability. Many builders mistakenly buy the largest unit available, assuming bigger always means better. Others buy units too small for their modern upgrades.

Calculating Safety Margins

You need to calculate your vehicle's total continuous electrical load. Add up the amperage draw of every component that runs continuously while driving.

• Electronic Fuel Injection (EFI) system: ~15 to 20 amps.

• Dual electric radiator fans: ~30 to 40 amps.

• High-pressure electric fuel pump: ~10 to 15 amps.

• Halogen or LED headlights: ~10 to 20 amps.

• Air conditioning blower motor: ~15 to 20 amps.

Once you total these numbers, add a 20% to 25% safety margin. This margin determines your required amperage. It ensures the unit operates efficiently without overheating during extended idle periods in heavy traffic.

Addressing the "Overcharging" Myth

A persistent myth plagues the automotive community. Many people believe a high-amp alternator will "force" too much current into a car and fry sensitive electronics. This is entirely false.

An electrical system draws only the amperage it needs. A 150-amp alternator installed in a car that only requires 40 amps will simply produce 40 amps. The voltage regulator maintains the electrical pressure (voltage), while the accessories dictate the flow (amperage). The actual risk lies in using undersized wiring to carry that potential current, not the alternator itself.

Wire Sizing Standards Data Chart

When you upgrade your output, you must upgrade your transport cable. Refer to the chart below to select the appropriate safety wire gauge based on your unit's maximum output.

Conclusion

A one wire setup successfully integrates the voltage regulator internally, drastically cleaning up cluttered engine bays. It offers unparalleled installation simplicity for custom builds. However, you cannot simply bolt it on and expect perfection. It requires deliberate infrastructure upgrades to operate safely and effectively. You must physically bypass old external regulators to prevent severe system conflicts. Upgrading your wire gauge prevents catastrophic heat build-up, and ensuring perfect grounds keeps the internal regulator stable.

Your next steps require a careful audit. Calculate your vehicle's total continuous amperage draw. Decide whether your specific electronics require the precision of remote voltage sensing found in 3-wire setups, or if the clean aesthetics of a single-wire system suit your goals better. Finally, source high-quality, heat-rated GXL wiring and proper ground straps before you order your new charging unit. Proper planning guarantees a reliable, powerful electrical foundation for your vehicle.

FAQ

Q: Will a high amp alternator hurt my car's electrical system?

A: No. The alternator only supplies what the vehicle demands. If your car needs 50 amps, a 150-amp alternator will only deliver 50 amps. The risk lies in using undersized wiring to carry that potential current safely, not the alternator itself.

Q: Why do I have to rev my engine to get the alternator to charge?

A: This is the nature of a self-exciting internal voltage regulator. It relies on residual magnetism inside the rotor. It requires a brief engine RPM spike (usually around 1200 RPM) to "turn on" and generate the magnetic field required for charging.

Q: Can I keep my dashboard battery warning light with a 1 wire alternator?

A: Standard one-wire units eliminate this function entirely. You must either upgrade to a modified one-wire unit equipped with an "L" (Lamp) terminal or install a dedicated aftermarket voltmeter in your dashboard to accurately monitor your system health.
