Does A One Wire Alternator Need To Be Grounded?

The automotive aftermarket loves simplified marketing terms. When you hear about a "one wire" setup, you might assume you only need a single connection to power your entire vehicle. However, this catchy name creates a dangerous misconception about fundamental physics. Every electrical circuit must be completed to function, making proper grounding absolutely non-negotiable. If you ignore the return path, you expose your system to severe voltage drops, burnt internal diodes, and complete catastrophic failure. These risks multiply quickly in custom builds, marine environments, or high-load applications. We will break down exactly how these charging systems operate and when a dedicated ground cable becomes mandatory. You will learn to identify hidden resistance, correctly size your grounding cables, and test your circuit health like a professional. Read on to protect your electrical system and maximize charging performance.

Key Takeaways

• A one wire alternator is naturally grounded through its physical casing mounting directly to the engine block.

• An explicit, dedicated ground wire is highly recommended (and sometimes mandatory) for marine applications, painted/powder-coated engine blocks, and high-amp audio setups.

• Relying solely on physical mounting for ground introduces the risk of electrical resistance over time due to corrosion, heat, and vibration.

• Matching the ground wire gauge (AWG) to the positive charge wire is required for safe, optimal performance.

The "One Wire" Concept vs. Electrical Reality

Demystifying the design is the first step to proper installation. Traditional charging systems rely on multiple wires. They need an ignition wire to turn on and a sensing wire to monitor battery voltage. A one wire alternator changes this entirely. It uses a special internal voltage regulator. This self-exciting regulator senses internal rotor RPM. Once the engine hits a specific speed, the unit turns on automatically. You only run a single positive charge cable back to the battery.

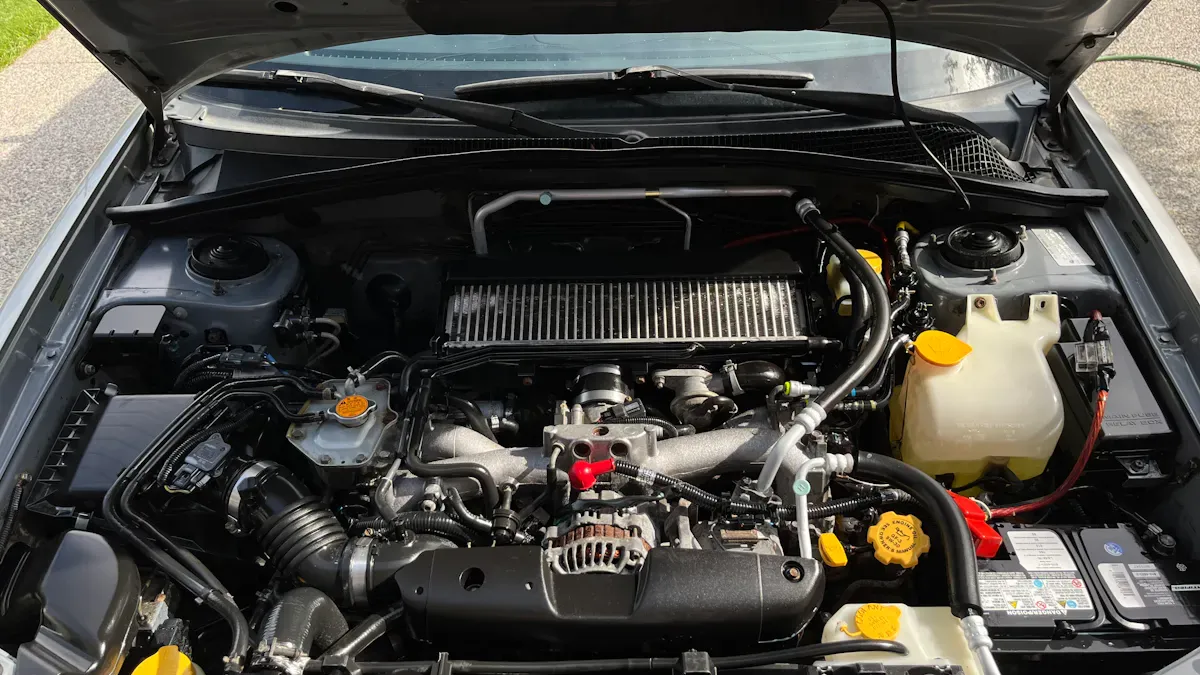

However, electricity always demands a complete loop. The default grounding method relies on physical contact. Current flows from the alternator casing. It travels through the mounting brackets. It enters the engine block. Finally, it reaches the negative battery terminal via the main engine ground strap. This structural path acts as the hidden second wire in the circuit.

This mechanical grounding method contains hidden vulnerabilities. Bolts loosen over time. Engine blocks develop surface rust. Oil leaks seep into bracket joints. Micro-vibrations wear down clean metal contacts. All these variables introduce electrical resistance. As resistance increases, the default ground path degrades. A degraded path throttles charging efficiency and creates dangerous heat buildup inside the housing.

When a Dedicated Ground Wire is Non-Negotiable (Specific Use Cases)

A standard casing ground works perfectly on a pristine, bare-metal factory engine. Real-world applications rarely match this ideal condition. Several specific scenarios require an explicit, dedicated ground cable to ensure reliability.

Custom builds and restomods present immediate grounding challenges. Enthusiasts often paint vintage engine blocks. They use powder-coated brackets for durability. They install anodized aluminum pulleys and accessories. These attractive finishes act as powerful electrical insulators. They block the natural ground path completely. You must scrape away this paint to bare metal. Alternatively, you must route a dedicated ground wire around the insulated components.

Marine environments demand stricter electrical standards. Boats operate in high humidity. Saltwater accelerates corrosion exponentially. Standard bracket grounds will rust and fail quickly. Marine safety regulations often mandate dedicated grounding cables. This prevents stray currents from causing galvanic corrosion on underwater metal parts.

High-demand electrical loads easily outpace standard casing grounds. Off-road vehicles use heavy winches and air compressors. Custom cars feature massive audio amplifiers. These accessories draw heavy amperage. To support them, installers perform the "Big 3 Upgrade." This involves upgrading the positive charge wire, the battery-to-chassis ground, and the engine-to-chassis ground. A high-output 1 wire alternator needs a dedicated ground wire directly to the battery. This ensures maximum current flow during heavy winch pulls or bass drops.

Vintage tractors and agricultural equipment introduce polarity challenges. Many old 6-volt farm vehicles used a positive-ground system. Upgrading to a modern 12-volt negative-ground system requires careful rewiring. Explicit grounding paths become vital here. They prevent accidental polarity shorts. They ensure the new internal regulator functions safely.

Application Grounding Requirement Chart

Performance & Safety Risks of Poor Grounding (Troubleshooting)

Ignoring your ground path leads to cascading electrical failures. You must recognize the symptoms of high resistance before components break down completely.

Premature component failure is the most expensive consequence. High resistance in the ground path creates an electrical bottleneck. The charging unit must work significantly harder to push current through this restriction. This extra effort generates excessive heat. Heat destroys the delicate internal diodes. It fries the self-exciting voltage regulator. A poorly grounded unit will burn out long before its rated lifespan.

Inconsistent output creates frustrating drivability issues. If your ground is weak, you will notice distinct symptoms across the vehicle. Look for these common warning signs:

• Flickering headlights that dim at idle and brighten under acceleration.

• Sluggish starter motor performance, especially when the engine is hot.

• Inaccurate or erratic dashboard gauge readings.

• Engine misfires at high RPM due to weak ignition coil voltage.

The "phantom drain" represents another hidden danger. A poor ground confuses the internal regulator. It prevents the regulator from cleanly shutting down when the engine stops. The circuit remains partially active. It continuously draws a tiny amount of current. You park your car on Friday. By Monday morning, you find a completely dead battery.

Framework for Proper One Wire Alternator Grounding

Building a reliable ground path requires careful preparation. You cannot simply bolt a wire anywhere and expect top performance. Follow this framework to guarantee a safe installation.

Evaluating the mounting surface comes first. You must inspect the bracket-to-engine mating areas carefully. Use a wire brush or sandpaper. Clean off all paint, grease, rust, and dirt. Ensure you have clean, shiny bare metal contact between the alternator, the bracket, and the engine block.

Sizing the ground wire correctly is critical for safety. Many people upgrade the positive charge cable but leave the factory ground straps alone. This creates a severe imbalance. Follow a strict rule of thumb: The dedicated ground wire must be equal to or larger than the positive charge wire gauge (AWG). You size these cables based on the maximum amperage rating.

Cable Sizing Guide (AWG)

Routing and termination require a methodical approach. Do not rush this phase. Improper termination introduces immediate resistance.

1. Identify the ground tap: Look at the rear of the casing. Find the designated threaded grounding hole. Do not use the main assembly bolts holding the casing together.

2. Route the cable: Run the wire to a clean, bare-metal location on the engine block. For maximum reliability, run it directly to the negative terminal of the battery. Keep the wire away from exhaust headers and moving pulleys.

3. Terminate the ends: Cut the wire to length. Strip the ends carefully. Use pure copper ring terminals. Crimp them tightly using a proper hydraulic crimping tool. Apply heat shrink tubing over the crimp to seal out moisture completely.

Torque and hardware selection finalize the installation. Never use standard smooth washers for ground connections. Instead, use internal or external star washers. The sharp teeth of a star washer bite into the metal. They pierce through invisible oxide layers to ensure solid contact. Tighten the bolt to the manufacturer's torque specifications. After tightening, coat the exposed connection with dielectric grease. Do not apply the grease before bolting it down. Dielectric grease prevents oxygen and moisture from causing future rust.

Verifying Your Ground Connection (Testing Protocol)

Visual inspections are not enough. You must verify the electrical integrity of your circuit. Professional technicians following industry standards use a specific method called the voltage drop test. It reveals hidden resistance under actual working conditions.

Grab a standard digital multimeter. Follow these exact steps to perform the voltage drop test:

1. Set your digital multimeter to the DC Volts setting.

2. Start the vehicle engine and let it idle safely.

3. Turn on high-demand accessories. Switch on the headlights, the heater blower motor, and the radio. This places the system under heavy load.

4. Place the red multimeter probe directly onto the metal casing of the alternator.

5. Place the black multimeter probe directly onto the negative post of the battery.

6. Read the voltage displayed on the screen.

You need a specific success metric here. A reading of less than 0.2 volts indicates a very healthy ground path. The lower the number, the better. If your multimeter displays anything higher than 0.2 volts, you have excess resistance. This requires an immediate dedicated ground wire installation or a thorough cleaning of your existing connections.

Continuous monitoring adds a layer of permanent safety. We recommend installing a reliable digital voltmeter inside the vehicle cabin. Dashboard warning lights often trigger too late. A real-time digital display helps you track charging health continuously. You will spot voltage drops days or weeks before they cause a breakdown.

Conclusion

Your electrical system depends entirely on complete circuits. The absence of an external sensing wire does not eliminate the need for a solid return path. While a unit can ground through its casing under ideal, bare-metal conditions, adding a dedicated ground wire is an inexpensive, fail-safe insurance policy for your electrical system.

• Always inspect and clean mounting surfaces to bare metal.

• Install dedicated ground cables for marine, restomod, and high-amp applications.

• Ensure your ground cable gauge matches or exceeds your positive charge cable.

• Verify your circuit health using a loaded voltage drop test.

Evaluate your current engine bay setup today. Check your brackets for paint or rust. If you are building a custom vehicle or wiring a heavy audio system, purchase a correctly sized wiring and ground kit. Consult with an electrical specialist for complex high-amp builds to guarantee long-term reliability.

FAQ

Q: Can I ground my one wire alternator directly to the chassis?

A: Yes, but grounding directly to the engine block or battery negative is superior. Chassis grounds are prone to resistance from spot welds, rust, and paint.

Q: What size wire should I use to ground a 100-amp alternator?

A: Minimum 4 AWG. Always match or exceed the gauge of the positive charge wire to prevent electrical bottlenecks and overheating.

Q: Do I need to run the ground wire all the way back to the battery?

A: Not strictly necessary if your engine block is heavily grounded to the battery. However, a direct-to-battery ground is the absolute most reliable method, especially in fiberglass-bodied vehicles or boats.
