Adding modern electronics to vintage engines demands highly reliable power. Upgrading your vehicle's charging system is a thrilling milestone for classic car and custom build enthusiasts. It breathes new life into tired electrical grids and supports high-draw accessories effortlessly. However, the minimalist appeal of this setup often masks serious electrical hazards. Successfully routing a one wire alternator requires much more than simply bolting on a shiny housing. You must rigorously evaluate grounding paths, wire gauges, and dashboard instrumentation. Ignoring these variables invites chronic undercharging, melted harnesses, or catastrophic electrical fires. This guide breaks down the precise electrical and mechanical requirements you need to succeed. You will learn how to bypass outdated regulators, calculate safe pulley ratios, and establish an optimal charge path. We cover everything required to execute this upgrade safely and reliably.
Wire sizing is non-negotiable: Upgrading to a high-output alternator requires significantly thicker charge cables (often 4-gauge to 8-gauge) to prevent thermal overload and fire hazards.
Grounding is the most common point of failure: A one wire alternator relies entirely on its physical mounting to the engine block for ground; painted or coated brackets will disrupt the circuit.
Factory dash gauges require re-evaluation: Original ammeters pose a major fire risk when paired with high-amp alternators and should be replaced with modern voltmeters.
Mechanical limits dictate performance: Alternators must not exceed their maximum safe RPM (typically 15,000 to 18,000 RPM), requiring precise pulley ratio calculations to prevent belt derailment or fan damage.
Before physically mounting your new 1 wire alternator, you must evaluate your current electrical infrastructure. Slapping a high-output unit onto a 50-year-old wiring harness without proper assessment creates a severe fire risk. Modern high-amp units easily overwhelm vintage circuitry.
Evaluate the Factory Ammeter: Older vehicles route the entire charging current through the firewall to an in-dash ammeter. Pushing 100+ amps through these brittle, undersized factory wires will melt the insulation. You should plan to bypass the ammeter entirely. Installing a dedicated modern voltmeter provides much safer voltage monitoring.
Identify the Core Charge Path: Decide where you will route the main charge cable. You can run it directly to the positive battery terminal or to the main lug on the starter solenoid. The starter solenoid is often preferred. It offers much cleaner routing in front-engine layouts and minimizes cable length.
Address the External Regulator: Legacy systems utilize external voltage regulators mounted on the firewall or fender. Since your new unit features an internal self-exciting regulator, the old external box becomes obsolete. Safely disconnect its wiring harness. Tape off or cap the loose connectors to prevent accidental chassis shorts.
Taking the time to map these circuits prevents dangerous electrical bottlenecks. A poorly routed charge path often results in immense voltage drops under heavy accessory load. Always confirm your wiring choices meet modern automotive restoration safety standards.
The term "single wire" accurately describes the positive charge path. However, the entire system relies heavily on a hidden second path. We call this path the physical ground. Without a zero-resistance ground, charging simply stops.
The cable connecting your alternator to the battery must match peak amperage output. It must also account for total cable length. Thin cables create immense electrical resistance. This resistance generates heat, melting wire insulation and risking fires.
Minimum Recommended Charge Cable Wire Gauge (AWG) | ||
Peak Alternator Output | Run Length (Up to 4 Feet) | Run Length (Over 4 Feet / Trunk Battery) |
|---|---|---|
75 to 100 Amps | 8-Gauge | 6-Gauge |
150 Amps | 6-Gauge | 4-Gauge |
200+ Amps | 4-Gauge | 2-Gauge or 1/0-Gauge |
Your alternator chassis must ground directly to the engine block. Many enthusiasts miss this crucial detail. They bolt the unit onto freshly painted engine blocks or powder-coated accessory brackets. Paint acts as a perfect insulator.
Scrape away all paint, powder coating, or clear coats from the mounting points. Bare metal must touch bare metal.
Ensure the bracket faces are entirely clean.
If you mount the unit to an insulated surface, you must intervene. Run a dedicated heavy-gauge ground strap from the casing directly to the engine block.
Verify ground integrity using a multimeter. Measure resistance between the alternator case and the negative battery post. It should read near zero ohms.

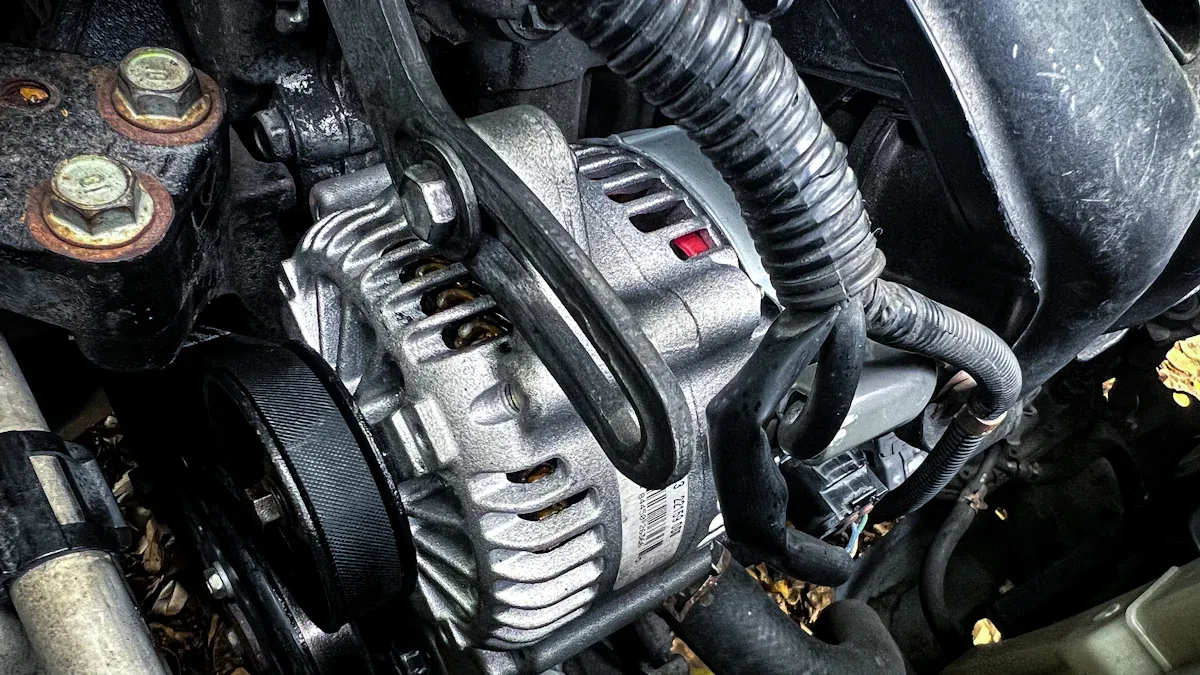

Proper installation requires careful, sequential mechanical and electrical execution. Rushing this process usually leads to misaligned belts or compromised crimps. Follow these standardized steps to ensure longevity.
Disconnect the Battery: Always remove the negative battery cable first. This prevents accidental grounding or dangerous shorts while routing heavy-gauge positive cables.
Mount the Alternator and Align Pulleys: Secure the housing tightly to the brackets. Use a reliable straight edge or laser alignment tool. Ensure the alternator pulley perfectly aligns with the crankshaft and water pump pulleys. Misalignment remains the primary cause of thrown or shredded V-belts.
Tension the V-Belt: Adjust the mounting bracket to apply proper tension. You should aim for approximately ½-inch to ¾-inch of deflection on the longest span of the belt. A loose belt slips under load. Slipping prevents the unit from reaching the required RPM to initiate charging. Over-tightening destroys internal bearings.
Route the Charge Cable: Connect your properly sized charge cable. Always use high-quality crimped ring terminals protected by heat-shrink tubing. Attach this cable from the "BAT" stud on the rear of the unit directly to the positive battery terminal or starter solenoid lug.
Test Output Mechanics: Reconnect the battery negative cable. Start the engine and safely bring the RPM up to roughly 1,000. Place a digital multimeter across the battery terminals. The reading should stabilize between 13.8V and 14.5V. This confirms the internal regulator has excited and is supplying a healthy charge.
Upgrading your charging system introduces an inevitable compromise. You typically lose the factory dashboard "No Charge" warning light functionality.
Traditional warning lights rely on a very specific grounding circuit. They require a ground path directly through the older style external regulator or multi-wire alternator. This path breaks when voltage generation begins, turning the light off. Standard single-wire setups inherently eliminate this dedicated circuit.
Some mechanics attempt to restore this light using dangerous bypass methods. They jump a wire directly from the main "BAT" terminal to the #1/Exciter terminal. Never do this. The #1 terminal acts as a ground when the engine remains off. This direct jump creates a severe parasitic draw, draining your battery completely overnight.
Furthermore, jumping it to an ignition constant-on source triggers severe drivability issues. It feeds 12-volt power backwards into the ignition system. Your engine will continue running even after you remove the key.
If you strictly require a functional warning light, you must plan ahead during purchasing. Look for models specifically manufactured featuring a compatible "R" or "#1" terminal. Ensure you wire this specific terminal using an inline resistor. A 400-ohm resistor prevents burning out the sensitive internal voltage regulator. Alternatively, simply installing an aftermarket digital voltmeter bypasses this headache entirely.
Internally regulated self-exciting units depend completely on physical rotation speed. Their mechanical RPM remains critical for starting the charge cycle and operating safely under heavy loads.
Most internal regulators remain dormant at very low speeds. They require the unit to spin at approximately 900 to 1,200 RPM before they "wake up". Once awake, they begin generating voltage. If your engine idles too low, it may not charge immediately. You might need to briefly rev the engine past this threshold after startup.
Alternators feature strict structural limits. Standard units usually max out between 15,000 and 18,000 RPM. Exceeding this boundary triggers catastrophic failure. The internal cooling fan blades deform under immense centrifugal force. Deformed blades can slice through the drive belt, leaving you stranded.
You must verify you will not over-spin the unit at redline. Use the formula below to find your specific ratio.
Pulley Ratio Calculation Chart | |
Calculation Step | Formula / Example Data |
|---|---|
Step 1: Measure Crankshaft Pulley | Example: 6.0 inches diameter |
Step 2: Measure Alternator Pulley | Example: 2.4 inches diameter |
Step 3: Determine Ratio | 6.0 ÷ 2.4 = 2.5 Ratio |
Step 4: Calculate Max Alternator RPM | 2.5 Ratio × 6,000 Engine Redline = 15,000 Alternator RPM |
Step 5: Verify Safety Limit | Is 15,000 RPM ≤ 18,000 RPM limit? Yes. Safe to operate. |
If your calculation exceeds 18,000 RPM, you must install a larger alternator pulley. Slowing the unit down protects its internal bearings and prevents explosive mechanical failure at highway speeds.
Upgrade Wire Sizes: Ditch vintage wiring and run a dedicated heavy-gauge charge cable matching your new unit's amperage output.
Prioritize Ground Paths: Always scrape away paint or powder coating from brackets to establish a zero-resistance physical ground.
Bypass Legacy Components: Disconnect factory ammeters and external regulators completely to prevent insulation meltdowns and electrical shorts.
Verify Mechanical Limits: Calculate your pulley ratio to ensure you safely hit the turn-on RPM threshold without exceeding the 18,000 RPM structural limit.
By executing these steps carefully, you guarantee a stable, high-output electrical foundation for your vehicle. Always confirm your final installation using a digital multimeter at idle and under load before considering the job complete.
A: It likely hasn't reached its self-exciting RPM threshold yet. You may need to briefly rev the engine past 1,200 RPM to trigger the internal regulator to start charging. Once triggered, it will continue charging even when RPMs drop back to idle.
A: Yes. The external regulator is no longer needed because the new alternator regulates voltage internally. Leaving the old regulator connected to the factory harness can cause electrical shorts; it should be safely bypassed or removed entirely.
A: Generally, yes. Most modern single-wire alternators feature bi-directional cooling fans and can generate charge regardless of rotation direction, making them adaptable for specialized serpentine or reverse-rotation setups.
A: It is highly advised against. Factory ammeters are not rated for the high output of modern alternators. Pushing 100+ amps through vintage dashboard wiring is a severe fire risk. Upgrade to a voltmeter instead.
