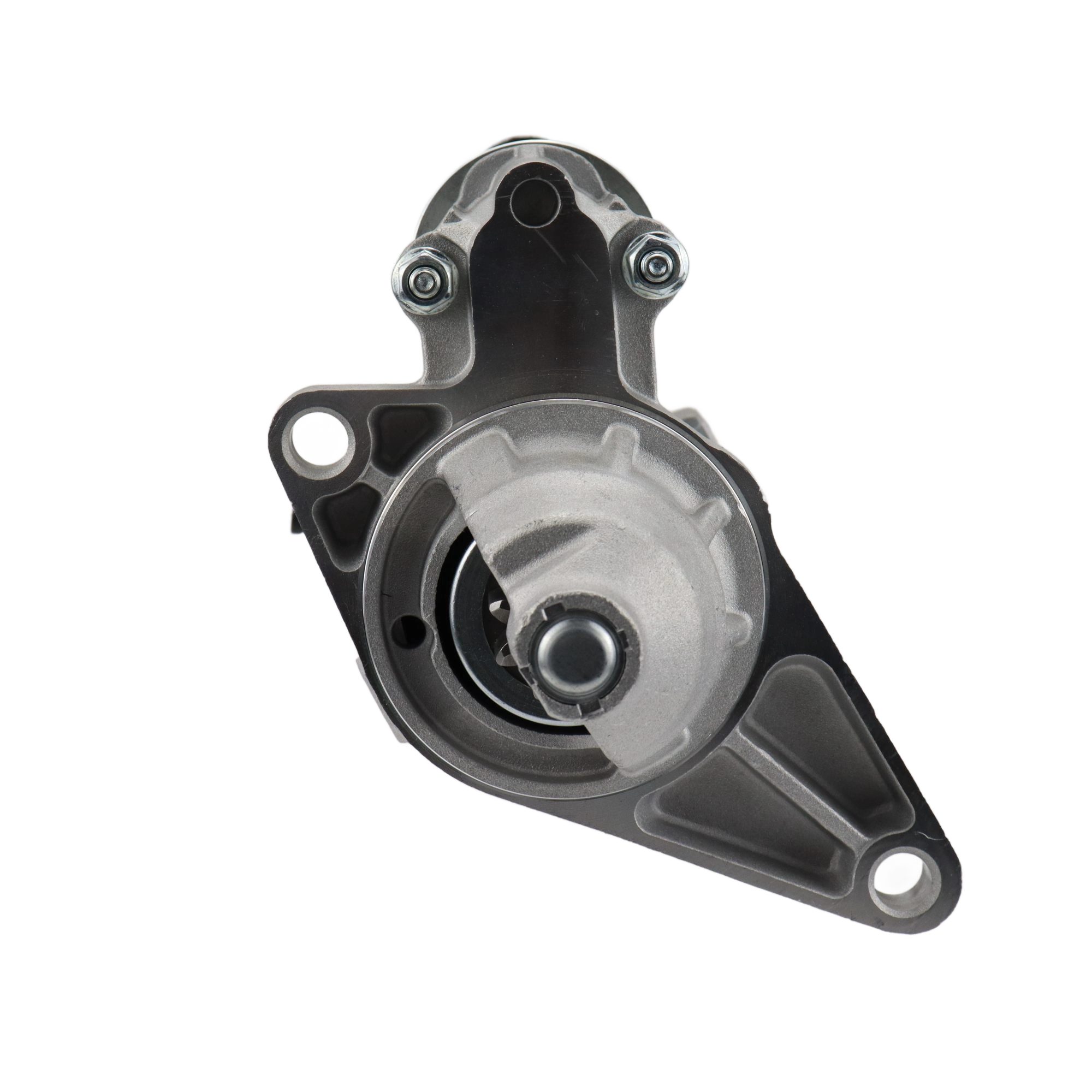

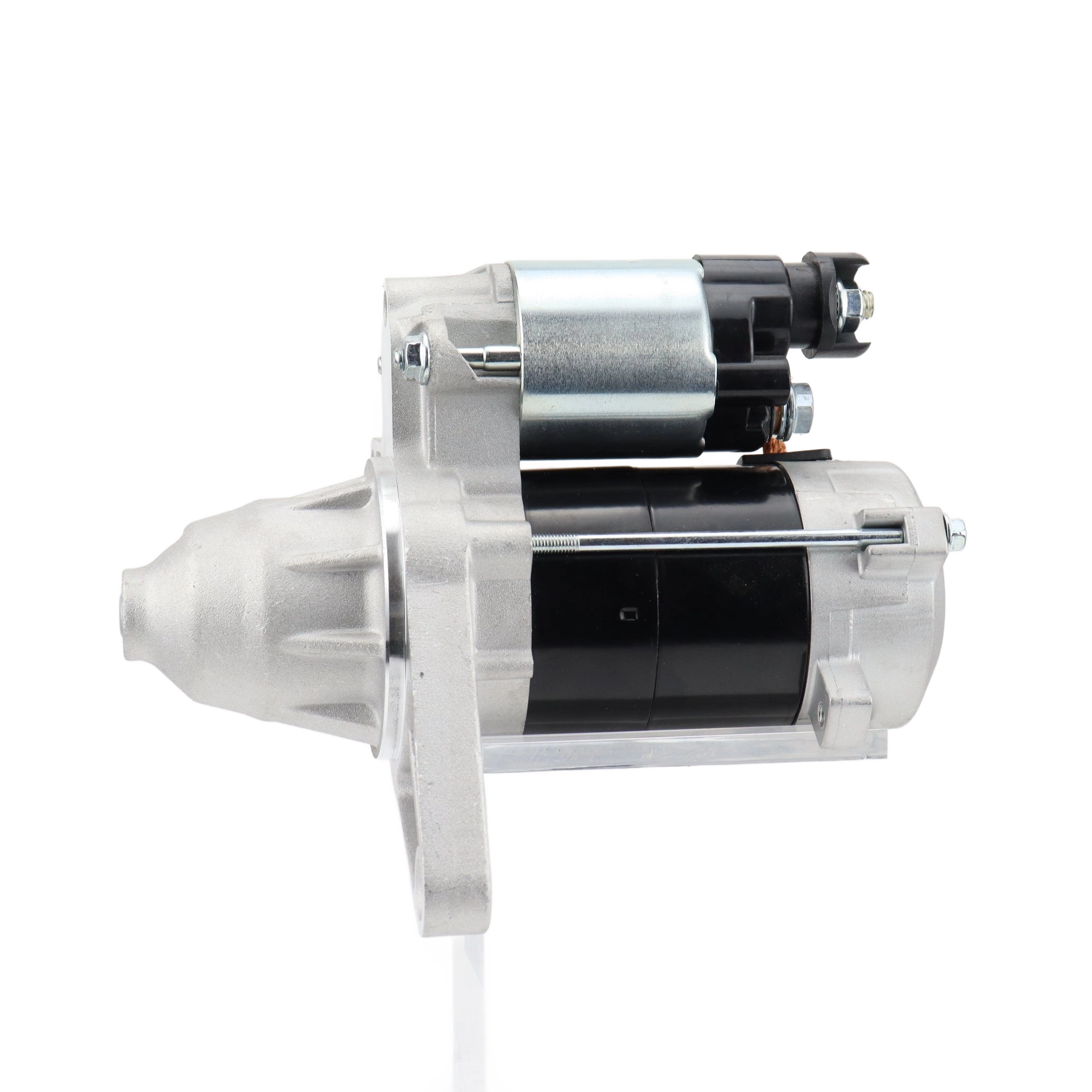

Starter Motor for DENSO Lester 17845 OEM 228000-9641 12V 0.8kw 9T

Features:
  • Premium starter
  • Excellent performance
  • Strict ISO quality control process
  • OEM standard and easy to install
  • High torque output for reliable cold starts
  • Corrosion-resistant housing, extended service life
  • Direct-fit replacement, easy installation with no modification required
  • 100% brand new, not remanufactured, ensuring the highest reliability

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
PropertyValue
BrandDENSO
Voltage   (V)12
Kilowatt   (kW)0.8
Teeth9
RotationCW
Flange Diameter (mm)75


Introduce:

The DENSO Lester 17845 Starter Motor, identified by the OEM reference 228000-9641, is a reliable and efficient component designed for a range of ACURA and HONDA models from 2001 to 2005. This starter motor is tailored to meet the electrical starting needs of ACURA EL and HONDA CIVIC vehicles, ensuring a smooth and consistent engine cranking experience.

Operating at a standard 12 volts and delivering a solid 0.8 kilowatts, this starter motor provides the necessary power to start your vehicle's engine effectively. Its clockwise rotation and 9-tooth gear engagement pattern are engineered to integrate seamlessly with a variety of flywheel types, enhancing its compatibility across different vehicle configurations. The 75mm flange diameter ensures a secure fit and simplifies the installation process.

Recognized by multiple OEM references, including those from PIC, BBB, BECK ARNLEY, and others, this starter motor serves as a versatile and reliable replacement option for various vehicle types. Manufactured to meet the highest standards of quality and performance, it is built to last, offering a long service life and consistent performance even in demanding conditions.


FAQ:

Q1. How long is your delivery time?

A: Generally it takes 45-60 days if the goods are out of stock. If it is in stock, it takes 7 days.

Q2. Do you provide samples ? is it free or extra ?

A: We can provide samples, but we don't take charge of the cost of the sample and the freight cost.

Q3. What are your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q5.How about your warranty?

A:Our warranty is one year.


OEMOEM Reference
LESTER17845
PIC190-470
BBB17845
BBB NEW17845
BBB NEWN17845
BECK ARNLEY187-0762
CARGO113704
DENSO228000-9641
DENSO428000-0320
DENSO428000-0321
DENSO FIRST TIME FIT280-0324
DIXIES-80012
HONDA31200-PLR-A01
HONDA31200-PLR-A02
HONDADJDE4
HONDADSDEU
LUCAS ELECTRICAL EUROPELRS02163
MPA17845
NAPA44-6841
NAPA POWER PREMIUM PLUS244-6841
NAPA POWER SUPREME44-6841
NSASTR-8281
REMY LIGHT DUTY17755
USA INDUSTRIESS2845
WAI (OLD)2-2331-ND
WILSON91-29-5633
WILSON NEW91-29-5633
WILSON NEW91-29-5633N
WOOD AUTOSTR70103


MakeModelTypeYear
ACURAELAuto and Light Truck2001
ACURAELAuto and Light Truck2002
ACURAELAuto and Light Truck2003
ACURAELAuto and Light Truck2004
ACURAELAuto and Light Truck2005
HONDACIVICAuto and Light Truck2001
HONDACIVICAuto and Light Truck2002
HONDACIVICAuto and Light Truck2003
HONDACIVICAuto and Light Truck2004
HONDACIVICAuto and Light Truck2005
