The Main Parameters：
| Property | Value |
| Brand | MITSUBA |
| Voltage (V) | 12 |
| Kilowatt (kW) | 1.6 |
| Teeth | 9 |
| Rotation | CW |
| Flange Diameter (mm) | 75 |
Introduce:

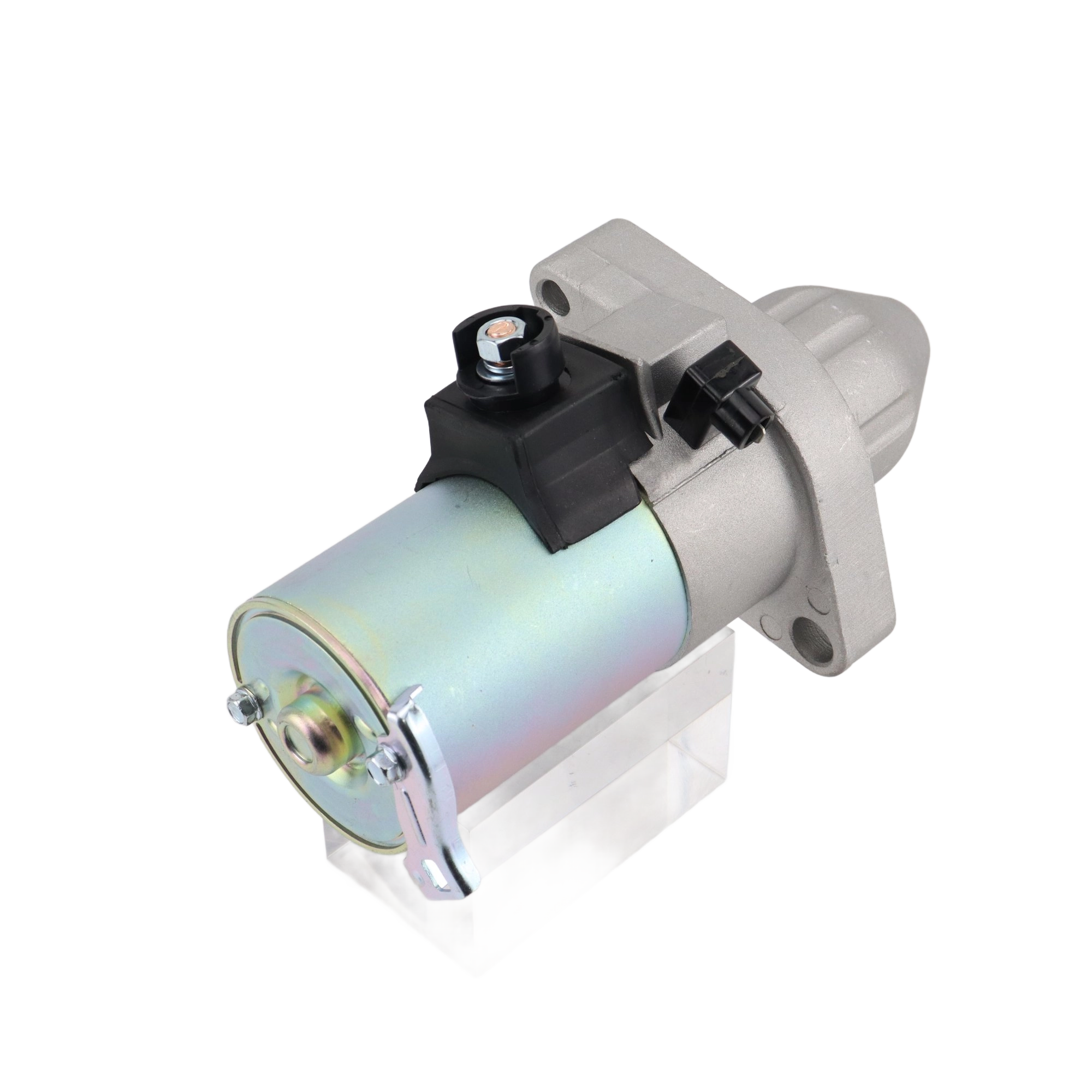

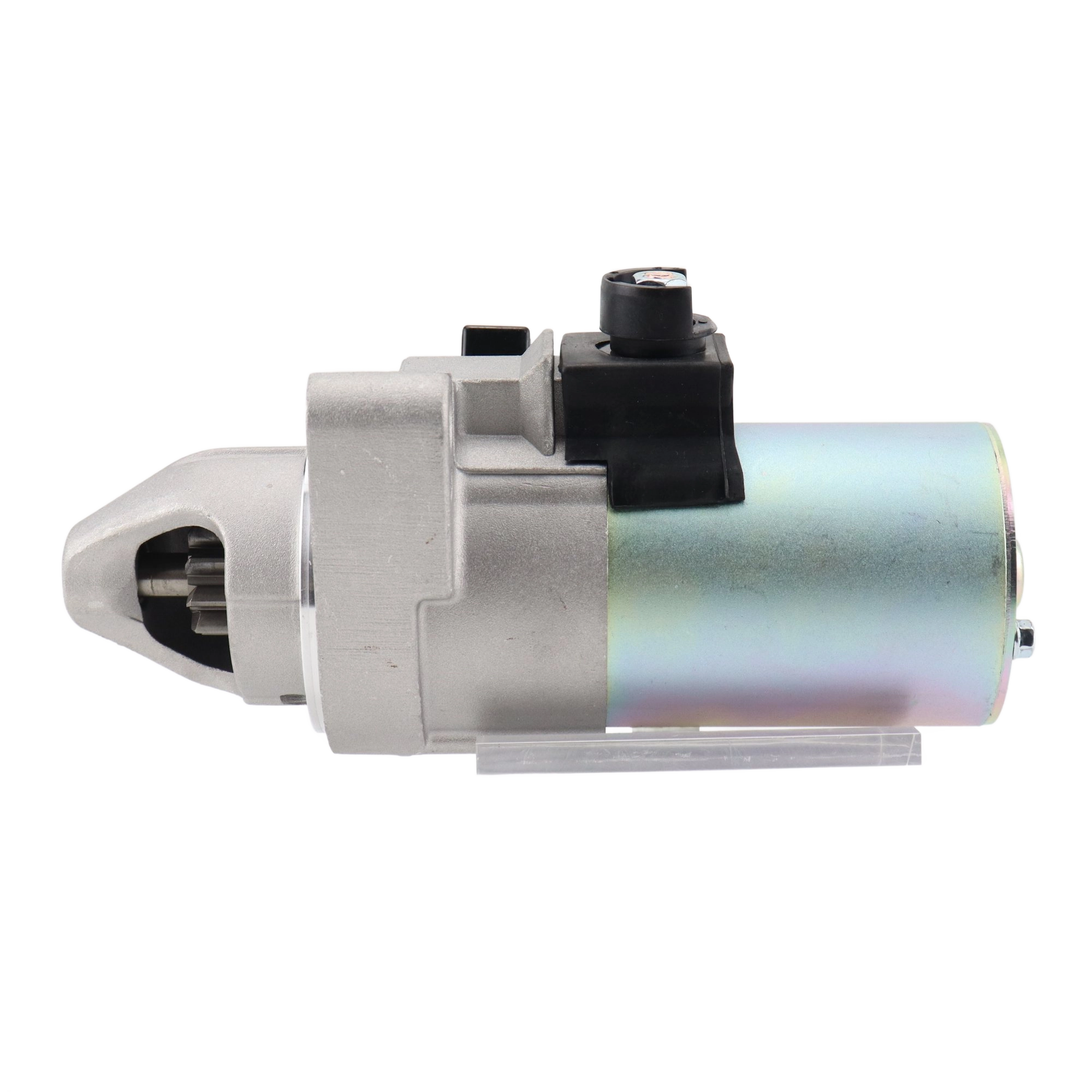

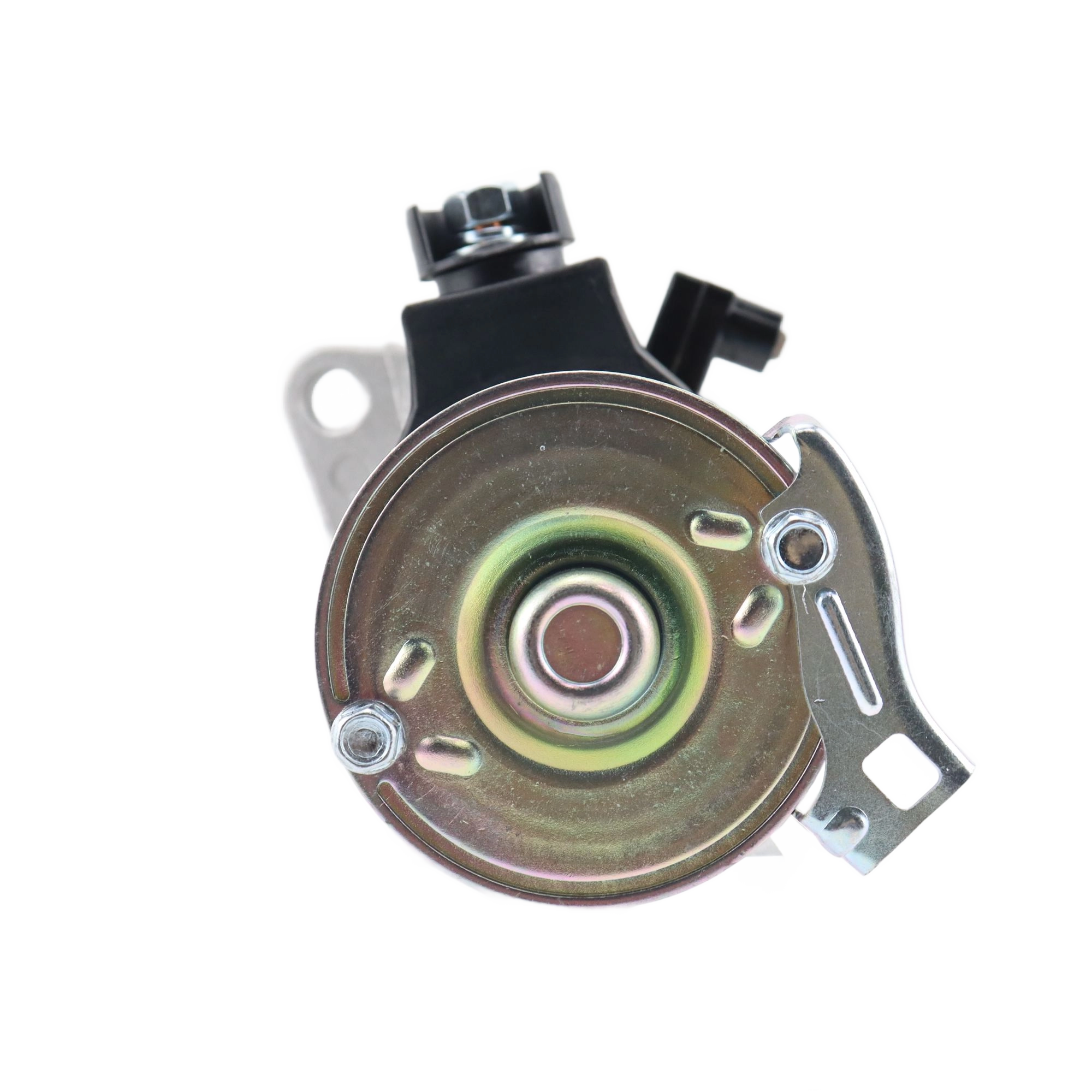

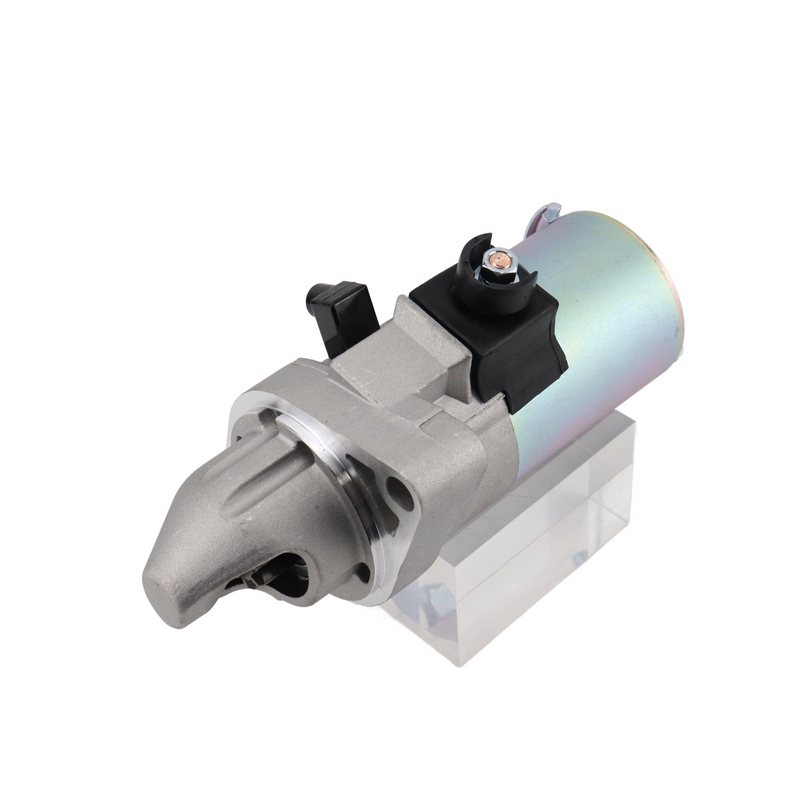

The MITSUBA Lester 17844 OEM SM612-06 Starter Motor is designed to provide reliable starting power for your vehicle. With a 12V voltage rating and a power output of 1.6 kW, this starter motor is engineered to deliver strong and consistent starts for Honda CR-V models from 2002 to 2006. The 9-tooth configuration and clockwise rotation ensure compatibility with these specific engine types, while the 75 mm flange diameter provides a secure connection to the engine block.
Constructed with high-quality materials, this starter motor is built to withstand the demands of everyday use and harsh conditions, ensuring long-lasting performance. Its efficient power output is ideal for quick engine starts, reducing the time it takes to get your vehicle up and running.
The MITSUBA Lester 17844 is designed for straightforward installation, making it a direct replacement for many existing models. This reduces downtime and ensures a seamless fit, making it a convenient choice for vehicle owners looking to upgrade their starting system.
We are confident in the quality of our products and offer a comprehensive warranty, along with dedicated customer support to address any questions or concerns. By choosing the MITSUBA Lester 17844 OEM SM612-06 Starter Motor, you're enhancing your vehicle's starting capabilities and ensuring optimal performance. Order now to experience the difference in power and reliability that this starter motor provides.
1. OEM Standard Mitsuba PMGR Technology
This starter adopts original Mitsuba SM612 series PMGR permanent magnet reduction design, far more efficient than traditional 1.2kW low-power versions. The built-in high-strength permanent magnet cuts power loss, generates higher cranking torque at low battery voltage, and delivers stable cold-start performance in freezing or high-temperature environments. All internal components including armature, planetary gears, brush holder and solenoid strictly follow Mitsuba OEM manufacturing standards, eliminating weak startup issues common on generic aftermarket starters.
2. Exact OE Replacement & Unique Solenoid Terminal Design
It serves as the factory upgrade replacement for Honda OE numbers 31200-PPA-A03, 31200-PPA-A05 and superseded part 31200-PPA-A04. Unlike visually similar Lester 17870 starters for Honda Accord, its solenoid terminal features a customized angle exclusive to 2002–2006 CR-V 2.4L (K24A1/K20A4 engines). No wiring modification or adjustment is required during installation to avoid circuit mismatch faults. Two mounting holes match original flange dimensions perfectly for lock-on installation.
3. Wide Cross-Reference Compatibility
Cross-referenced as Lester 17844, this unit matches hundreds of aftermarket part codes from WAI, Bosch, ACE, Nastra, NGK, Rayloc and more. It unifies multiple replacement SKUs for repair shops and parts wholesalers, simplifying inventory management and part lookup. Both brand-new and remanufactured units are available to meet different budget demands.
4. Upgraded 1.6kW High Power vs 1.2kW Base Model
Compared to the shorter 1.2kW variant (Lester 191-178), this 1.6kW model features an extended field casing and reinforced gear assembly. It generates stronger cranking force for frequent ignition cycles, heavy loads and cold mornings, lowering battery discharge pressure and extending the service life of your vehicle battery. Precision 9-tooth drive gear with hardened surface resists wear and gear stripping after thousands of startup cycles.
5. Rigorous Multi-Stage Quality Testing
Every starter undergoes full factory inspections including no-load rotation test, cranking torque test, solenoid actuation test and high-low temperature durability cycling. All moving parts use wear-resistant bushings and long-life carbon brushes to reduce maintenance frequency. The sealed housing blocks dust, moisture and engine oil splashes to prevent internal short circuits.
6. Perfect Vehicle Fitment
Exclusive fit for 2002–2006 Honda CR-V 2.4L (2354cc K24A1) and 2006 CR-V 2.0L K20A4 gasoline engines. Plug-and-play direct swap for original factory starters without cutting, drilling or auxiliary adapters, greatly shortening garage repair time.
Product Core Specifications
Model: Mitsuba SM612-06 / Lester 17844
Voltage: 12V
Power: 1.6kW
Rotation: Clockwise (CW)
Drive Gear: 9 Teeth
Design: PMGR Permanent Magnet Gear Reduction
Mount Type: 2-Hole Flange Mount
Applicable Vehicle: 2002–2006 Honda CR-V 2.0L / 2.4L Gas Engine
What You Get
1 x Complete Starter Motor AssemblyFull After-Sales Warranty & Technical Installation Support
FAQ:
Q1. How long is your delivery time?
A: Generally it takes 45-60 days if the goods are out of stock. If it is in stock, it takes 7 days.
Q2. Do you provide samples ? is it free or extra ?
A: We can provide samples, but we don't take charge of the cost of the sample and the freight cost.
Q3. What are your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5.How about your warranty?
A:Our warranty is one year.
